Automatic Poultry Gizzard Peeler
A counter-rotating roller machine for removing the inner lining from chicken and duck gizzards, planned for approximately 1,000–2,500 pieces per hour.
- Model
- JS-GP-AUTO
- Planning Capacity
- 1,000–2,500 pieces/hour*
- Drive Power
- Approx. 1.5 kW*
- Application
- Chicken and duck gizzards
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.
PRODUCT OVERVIEW & WORKING PRINCIPLE
Counter-rotating peeling rollers for poultry gizzards

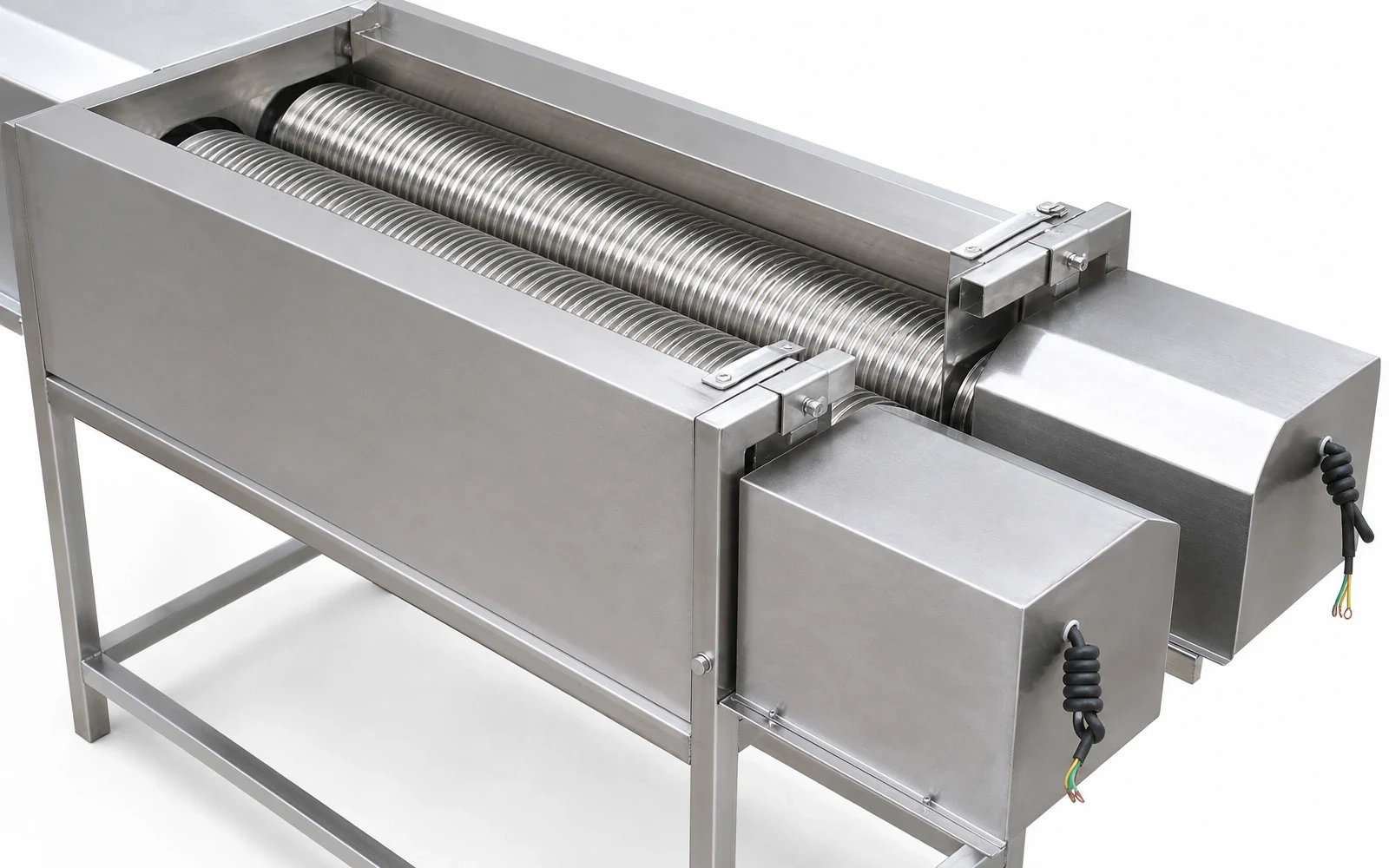

The SIMPLOT automatic poultry gizzard peeler uses a pair of counter-rotating micro-grooved rollers to remove the tough inner yellow lining from opened chicken or duck gizzards. A water spray lubricates the working area and helps carry loosened residues away.
Planning output is approximately 1,000–2,500 pieces per hour. Feed arrangement, roller pattern, motor and water connection can be customized around gizzard size and operator workflow.
KEY FEATURES
Controlled roller contact for repeatable lining removal
Roller profile, feed preparation, water supply and operator workflow are matched to the target gizzard size before throughput is confirmed.
01
Counter-rotating Rollers
Peel the inner lining through controlled roller contact.
02
Water-assisted Operation
A spray connection lubricates and rinses the working zone.
03
Chicken and Duck Application
Configuration can be selected for the target gizzard size.
04
Compact Driven Unit
Suitable for a dedicated by-product workstation.
05
Custom Feed Arrangement
Single or dual-feed layouts can be discussed.
TECHNICAL SPECIFICATIONS
Technical data and configuration
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | JS-GP-AUTO |
|---|---|
| Planning Capacity | Approx. 1,000–2,500 pieces/hour* |
| Roller Type | Counter-rotating micro-grooved peeling rollers |
| Installed Power | Approx. 1.5 kW* |
| Application | Chicken and duck gizzards |
| Water Connection | Upper spray / rinse connection |
| Customization | Feed, rollers, voltage, frame and discharge |
RELATED EQUIPMENT
Build the connected process around this equipment.
Review equipment that can be coordinated as part of a practical meat or poultry processing workflow.
Offal and By-Product Screw Chiller
A compact screw chiller for poultry feet, wings, gizzards and small products, with planning capacities of approximately 500–2,000 kg per hour.
Explore Equipment
Stainless Steel Poultry Washing Tank
A food-processing washing and soaking tank with reinforced rims, perforated drainage floor and customizable size for poultry and by-product handling.
Explore EquipmentFREQUENTLY ASKED QUESTIONS
Before you request a proposal.
These answers cover common selection questions. Contact us for a review based on your actual project conditions.
This page describes lining removal, upstream cutting/opening must be confirmed separately.
Preparation, gizzard size, roller condition, water supply and operator feeding all affect the result.
Yes, after confirming roller and feed configuration.
Feed layout and working arrangement can be selected for the target output.
