Offal and By-Product Screw Chiller
A compact screw chiller for poultry feet, wings, gizzards and small products, with planning capacities of approximately 500–2,000 kg per hour.
- Model
- JS-PC-OFFAL
- Planning Capacity
- 500–2,000 kg/hour*
- Application
- Feet, wings, gizzards and small poultry products
- Cooling Medium
- Chilled water / ice water
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.
PRODUCT OVERVIEW & WORKING PRINCIPLE
Continuous cooling and washing for poultry by-products

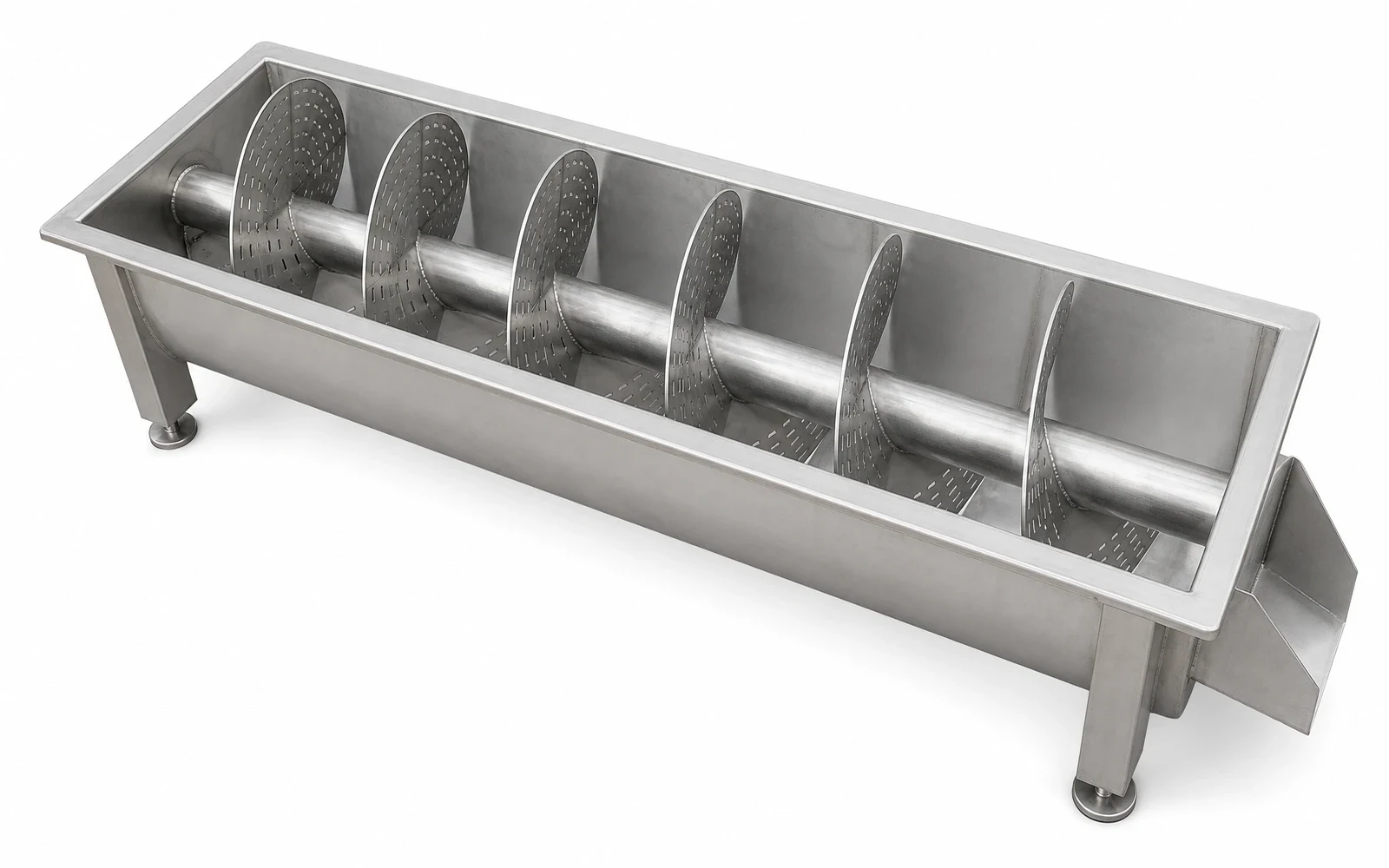

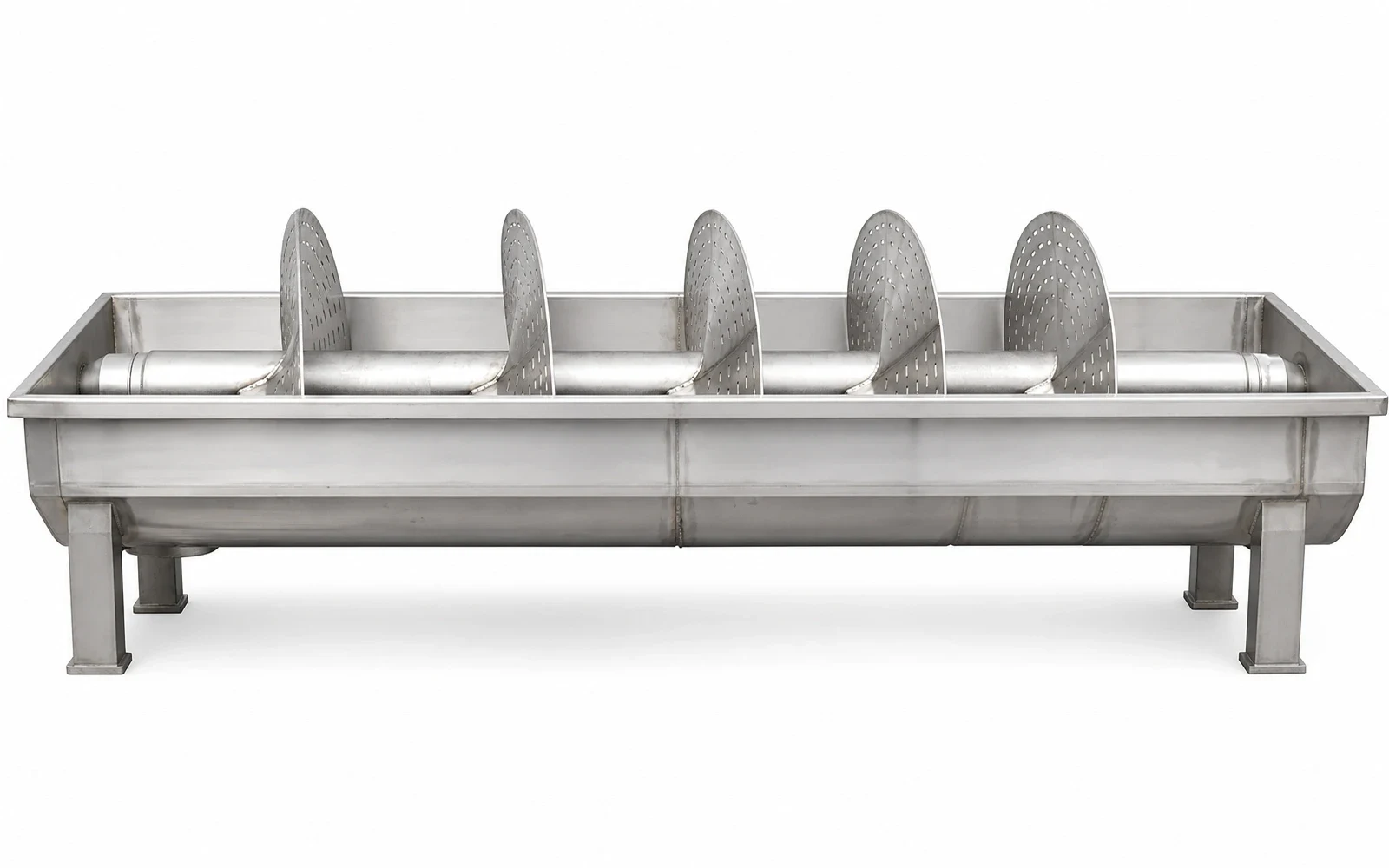

The SIMPLOT offal and by-product screw chiller moves poultry feet, wings, gizzards and other small products through chilled water with a perforated spiral. The open perforations allow water movement and help separate loose residues during conveying.
Planning capacity is approximately 500–2,000 kg per hour. Diameter, length, drive power, discharge arrangement and residence time can be customized around the product size, inlet temperature and cooling target.
KEY FEATURES
Continuous cooling for smaller poultry products
Spiral speed, working length and cooling-water conditions are configured around product size, target temperature and required residence time.
01
Small-product Application
Designed for poultry parts and by-products.
02
Perforated Spiral
Supports conveying, water movement and drainage.
03

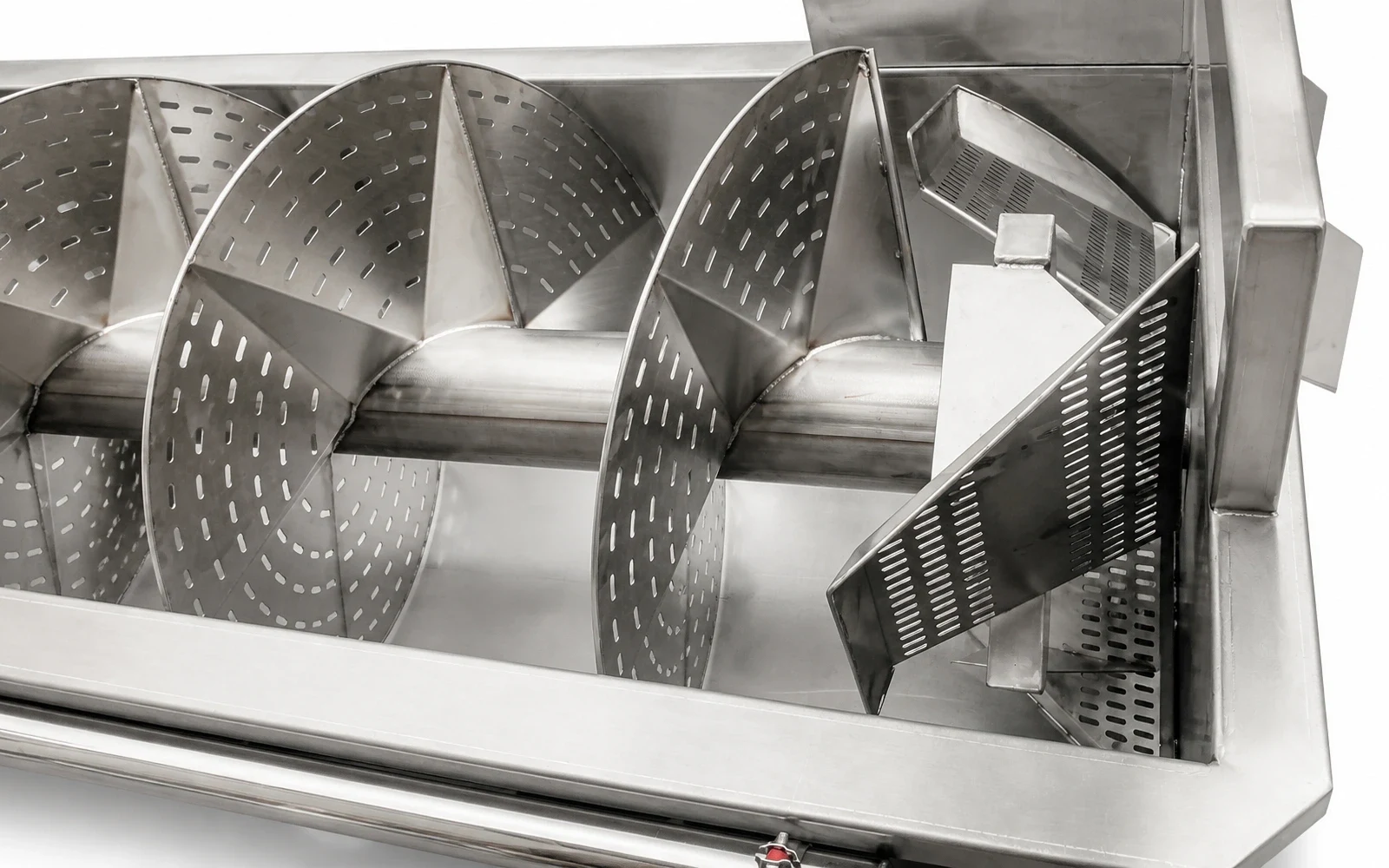

Automatic Discharge
An end scraper or lift arrangement transfers product out of the tank.
04
Compact Configuration
Reference lengths of approximately 2–4 m suit smaller products.
05
Custom Cooling Time
Spiral speed and length can be selected for the required residence time.
TECHNICAL SPECIFICATIONS
Technical data and configuration
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | JS-PC-OFFAL |
|---|---|
| Planning Capacity | Approx. 500–2,000 kg/hour* |
| Spiral Diameter | Approx. Φ600–800 mm* |
| Working Length | Approx. 2–4 m* |
| Drive Power | Approx. 1.5–2.2 kW* |
| Cooling Medium | Chilled water / ice-water mixture |
| Application | Poultry feet, wings, gizzards, necks, quail and similar products |
| Material / Utilities | Confirmed in the proposal |
| Customization | Diameter, length, speed, discharge, voltage and cooling interface |
RELATED EQUIPMENT
Build the connected process around this equipment.
Review equipment that can be coordinated as part of a practical meat or poultry processing workflow.
Automatic Poultry Gizzard Peeler
A counter-rotating roller machine for removing the inner lining from chicken and duck gizzards, planned for approximately 1,000–2,500 pieces per hour.
Explore Equipment
Stainless Steel Poultry Washing Tank
A food-processing washing and soaking tank with reinforced rims, perforated drainage floor and customizable size for poultry and by-product handling.
Explore EquipmentFREQUENTLY ASKED QUESTIONS
Before you request a proposal.
These answers cover common selection questions. Contact us for a review based on your actual project conditions.
Yes, after confirming product size and fragility.
It is the upper planning range.
Yes, both can be customized.
The chiller tank and conveying system are described here, the cold-water source must be defined in the proposal.
