Poultry Lung Vacuum Extraction Machine
A mobile poultry lung extraction system using a liquid-ring vacuum pump, separator tank and dual suction guns, planned for approximately 600–1,200 birds per hour.
- Model
- JS-EV-LUNG
- Planning Capacity
- 600–1,200 birds/hour*
- Vacuum System
- Liquid-ring pump
- Operation
- Dual suction guns*
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.
PRODUCT OVERVIEW & WORKING PRINCIPLE
Vacuum-assisted removal of poultry lungs and cavity residues

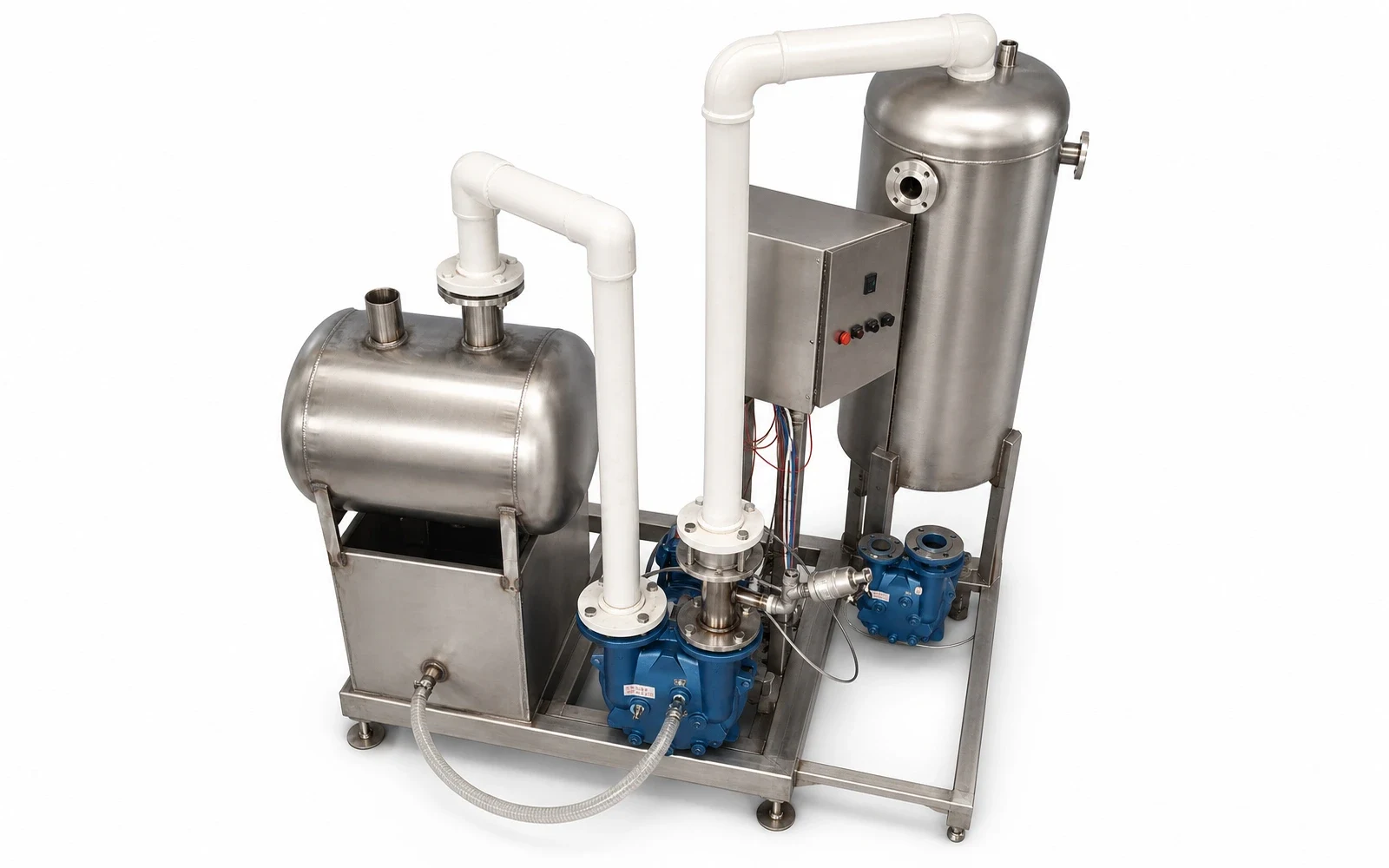

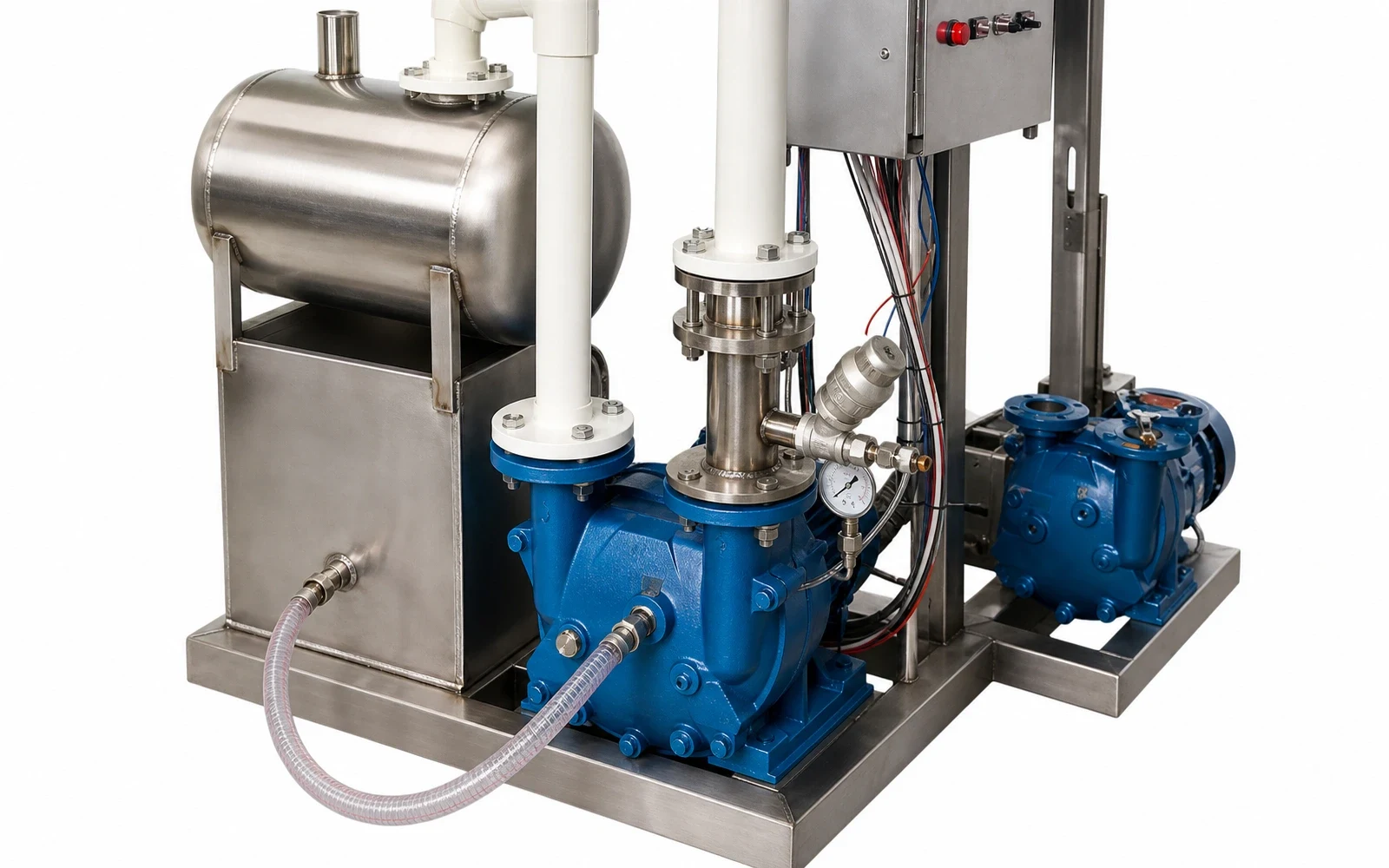

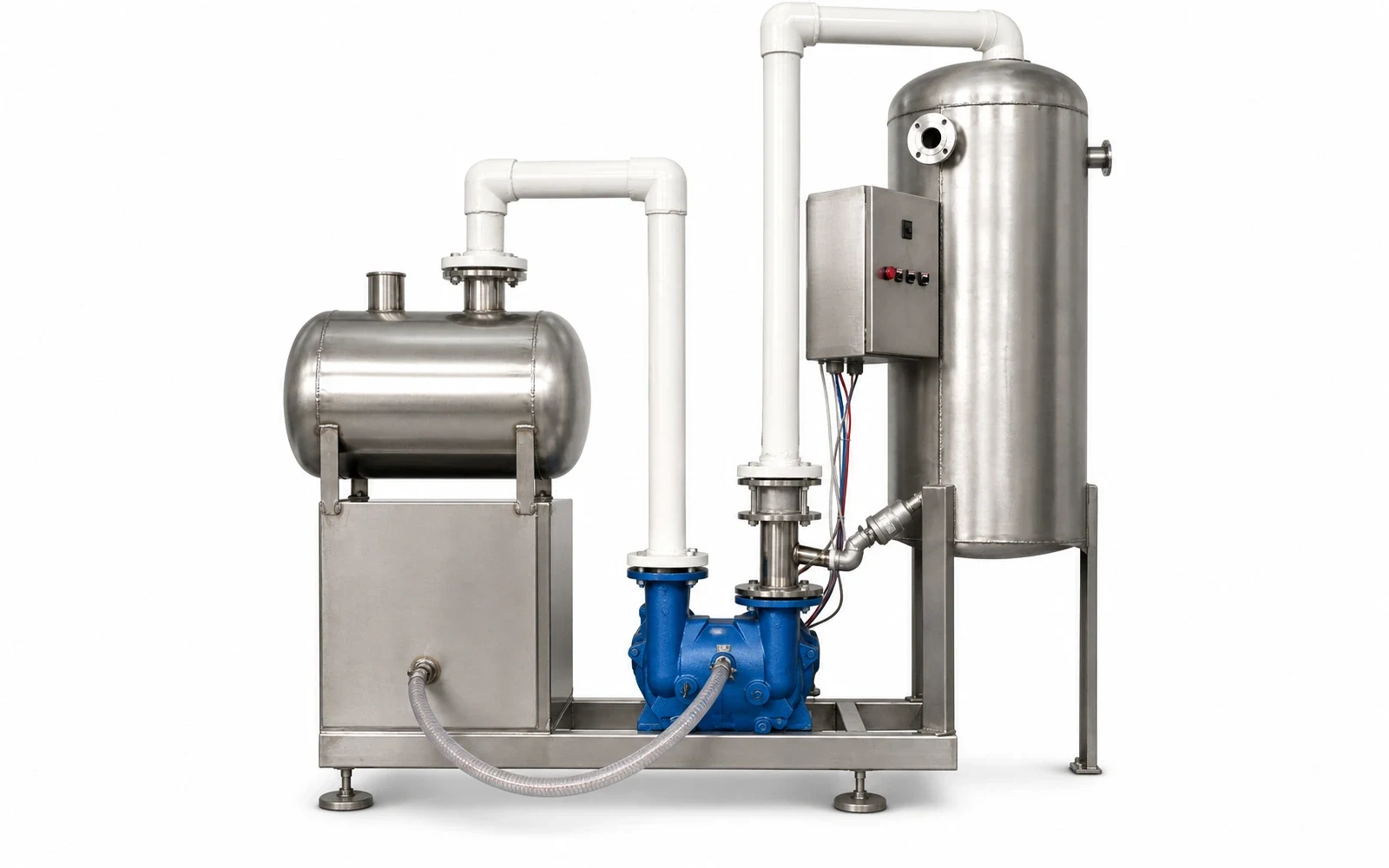

The SIMPLOT poultry lung vacuum extraction machine uses negative pressure to remove lungs and residual viscera from poultry body cavities after evisceration. The documented system combines a liquid-ring vacuum pump, mobile frame, separator tank and two suction handpieces.
The separator tank helps protect the vacuum system from entrained liquid and residues. Final hose length, gun quantity and pump capacity are selected around the operator stations and required line output.
Planning capacity is approximately 600–1,200 birds per hour. Power, vacuum level, station quantity and dimensions can be customized after reviewing the processing layout.
KEY FEATURES
Vacuum extraction arranged for practical operator stations
Pump sizing, separator capacity, hose layout and station quantity are selected together around the carcass, operator workflow and target line output.
01
Vacuum-assisted Extraction
Removes lungs and residual material from the cavity.
02
Dual-gun Operation
Supports two documented operator handpieces.
03
Liquid-ring Vacuum Pump
Suitable for wet processing environments when correctly installed.
04
Separator Tank
Helps separate entrained liquid before the pump.
05
Mobile Frame
Supports positioning and service access.
06
Custom Station Layout
Pump size, hoses and gun quantity can be selected by project.
TECHNICAL SPECIFICATIONS
Technical data and configuration
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | JS-EV-LUNG |
|---|---|
| Planning Capacity | Approx. 600–1,200 birds/hour* |
| Reference Dimensions | Approx. 1,100 × 700 × 1,600 mm* |
| Pump Type | Liquid-ring vacuum pump |
| Installed Power | Approx. 3.0–4.0 kW* |
| Reference Vacuum | Confirmed from the selected pump data and commissioning test |
| Operator Tools | Dual suction guns in documented configuration |
| Separator | Stainless-steel gas/liquid separator tank |
| Main Construction | Stainless fabricated components plus purchased pump components |
| Customization | Pump capacity, gun quantity, hose layout, voltage and frame |
RELATED EQUIPMENT
Build the connected process around this equipment.
Review equipment that can be coordinated as part of a practical meat or poultry processing workflow.
Complete Overhead Poultry Processing Line
A configurable overhead line connecting poultry-processing stages, with planning capacities from approximately 500 to 10,000 birds per hour.
Explore Equipment
Automatic Poultry Gizzard Peeler
A counter-rotating roller machine for removing the inner lining from chicken and duck gizzards, planned for approximately 1,000–2,500 pieces per hour.
Explore EquipmentFREQUENTLY ASKED QUESTIONS
Before you request a proposal.
These answers cover common selection questions. Contact us for a review based on your actual project conditions.
No, it removes lungs and residual material after the main evisceration step.
It is a planning value based on pump sizing and operator workflow.
It helps prevent liquid and residue from reaching the pump directly.
Pump capacity and station quantity can be customized after layout review.
