Two-Stage Spiral Poultry Pre-Chiller
A two-stage spiral pre-chiller for chicken, duck and goose processing, using screw conveying and aeration for controlled, more uniform cooling.
- Application
- Chicken, duck and goose
- Total Length
- 10 m in two sections
- Main Material
- 304 stainless steel with listed exclusions
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.
PRODUCT OVERVIEW & WORKING PRINCIPLE
Two-stage spiral conveying for controlled poultry cooling

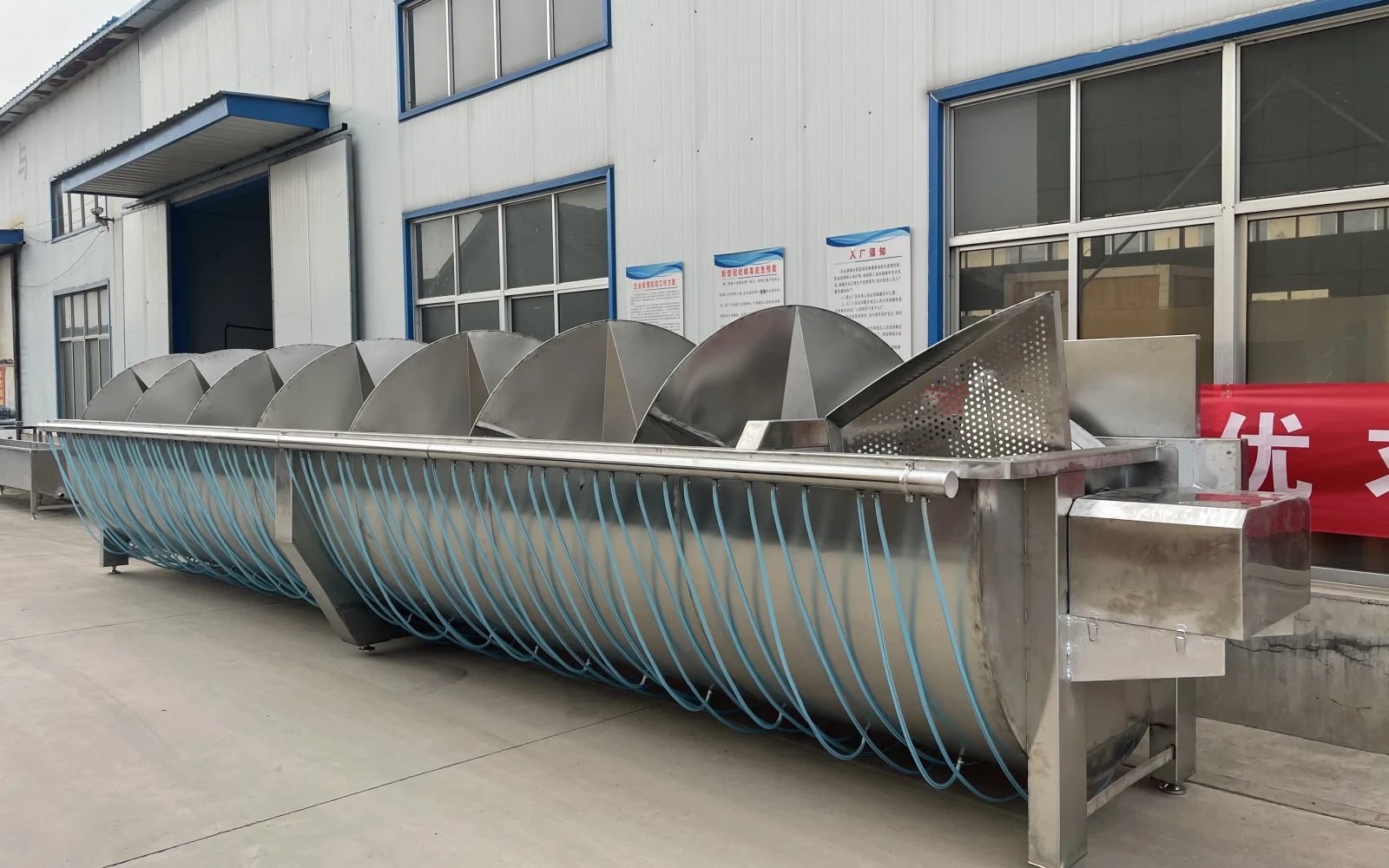

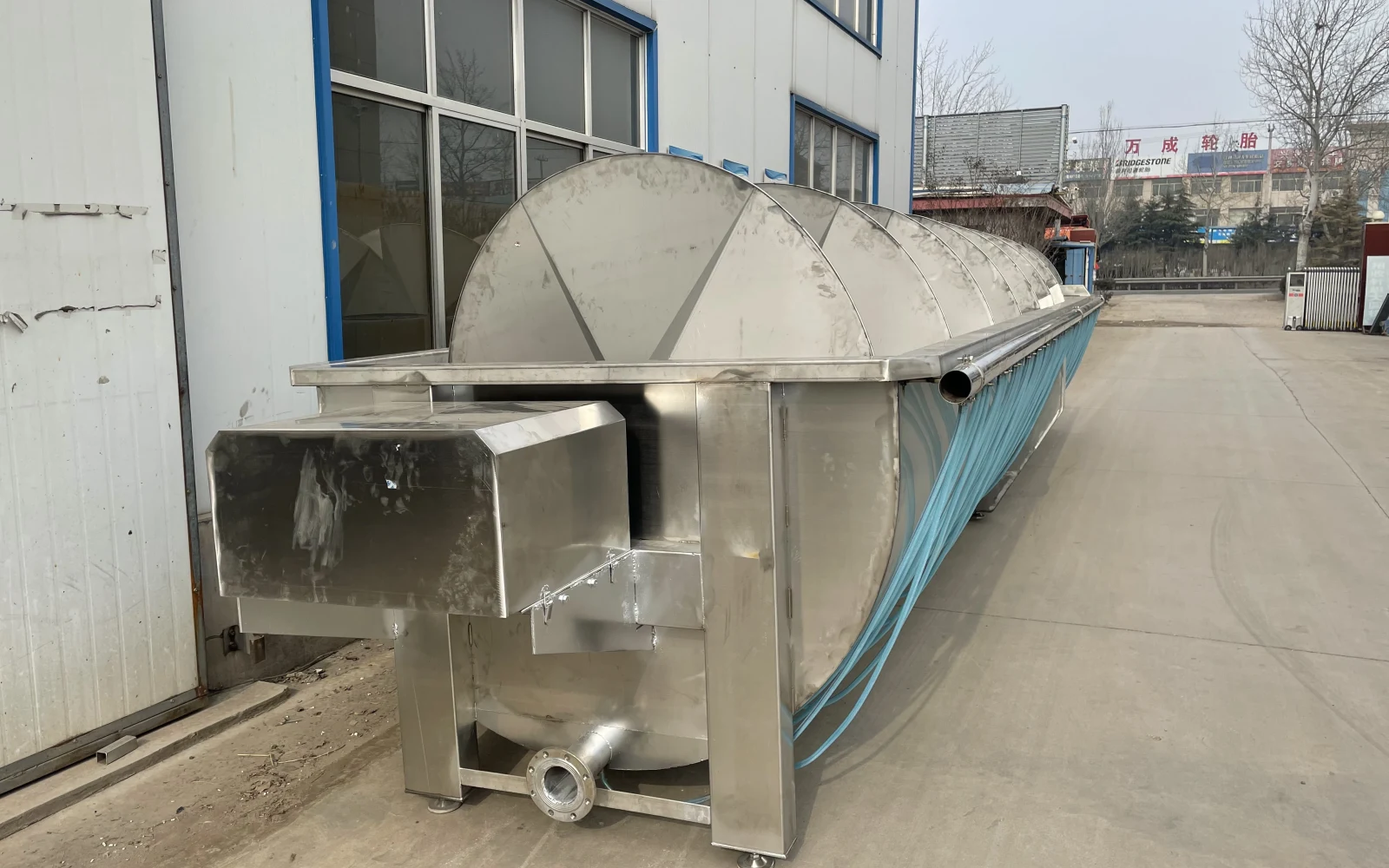

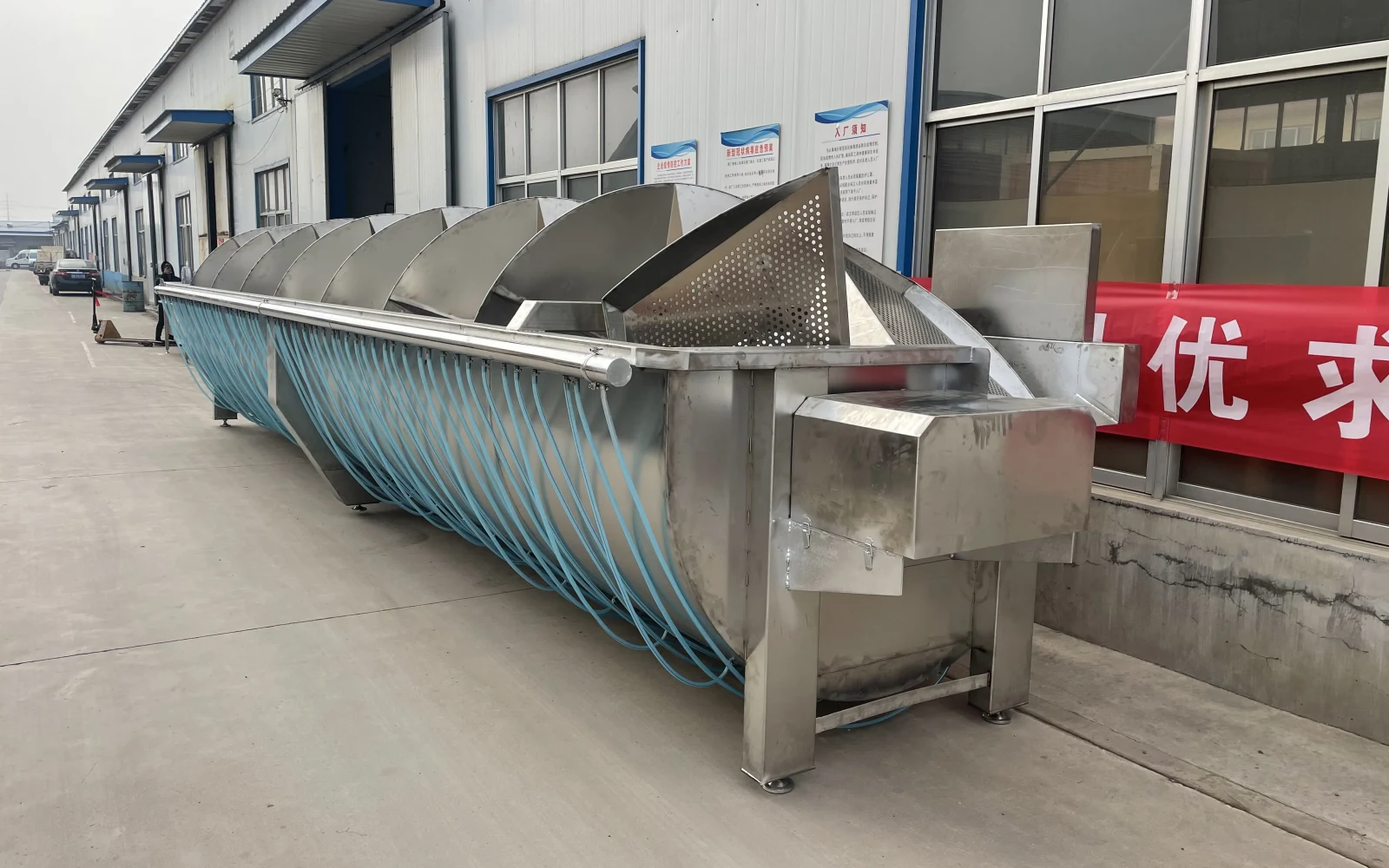

The SIMPLOT two-stage spiral poultry pre-chiller is used after washing and before cutting or downstream handling. Rotating spirals move poultry through two cooling sections while aeration supports water movement around the product.
The documented configuration combines a 4 m first section and a 6 m second section, with separate variable-frequency spiral drives and vortex blowers.
Residence time, water temperature and final equipment length are selected for the actual product and plant. Alternative lengths and utility configurations can be customized after project review.
KEY FEATURES
Two cooling stages planned as one controlled process
Section length, spiral speed, aeration and cooling-water conditions are coordinated around the required residence time and target product temperature.
01
Two-stage Layout
Documented 4 m and 6 m cooling sections.
02
Spiral Conveying
Moves poultry continuously through the tanks.
03
Aerated Cooling
Vortex blowers support water movement.
04
Variable-frequency Drives
Separate drives support operating adjustment.
05
Defined Material Scope
Main fabrication is documented as 304 stainless steel with stated exclusions.
06
Custom Residence Time
Cooling time and section length can be engineered by project.
TECHNICAL SPECIFICATIONS
Technical data and configuration
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Application | Chicken, duck and goose |
|---|---|
| Section 1 | Approx. 4,000 × 2,000 × 2,300 mm, 0.75 kW spiral, 3 kW blower* |
| Section 2 | Approx. 6,000 × 2,000 × 2,100 mm, 2.2 kW spiral, 5.5 kW blower* |
| Tank / Spiral / Shaft Thickness | Approx. 3 / 2.5 / 3 mm* |
| Main Fabrication | 304 stainless steel* |
| Exclusions | Chains, motors, bearings, blowers, hoses and motor plates are excluded from the 304 statement |
| Residence Time | Project-specific |
| Custom Options | Length, drive, aeration, voltage and interfaces |
RELATED EQUIPMENT
Build the connected process around this equipment.
Review equipment that can be coordinated as part of a practical meat or poultry processing workflow.
Stainless Steel Poultry Washing Tank
A food-processing washing and soaking tank with reinforced rims, perforated drainage floor and customizable size for poultry and by-product handling.
Explore Equipment
Complete Overhead Poultry Processing Line
A configurable overhead line connecting poultry-processing stages, with planning capacities from approximately 500 to 10,000 birds per hour.
Explore EquipmentFREQUENTLY ASKED QUESTIONS
Before you request a proposal.
These answers cover common selection questions. Contact us for a review based on your actual project conditions.
Two sections of 4 m and 6 m.
Yes, alternative lengths can be engineered.
Only the listed main fabricated parts, purchased components are excluded.
No, it is selected for the product and cooling target.
