An electric steam generator for poultry scalding and plant sanitation, configurable for approximately 100–500 kg of steam per hour and destination electrical standards.
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.

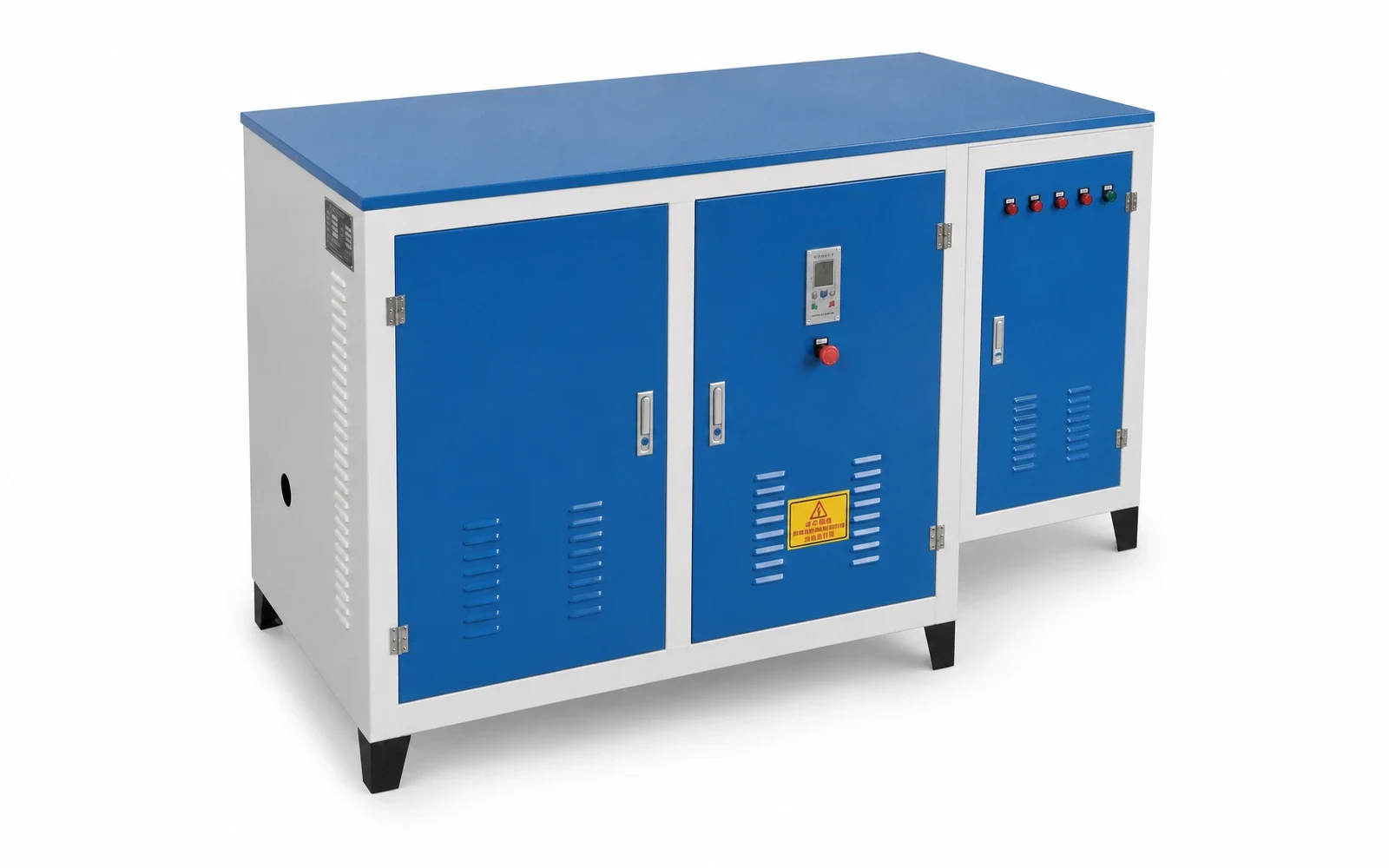

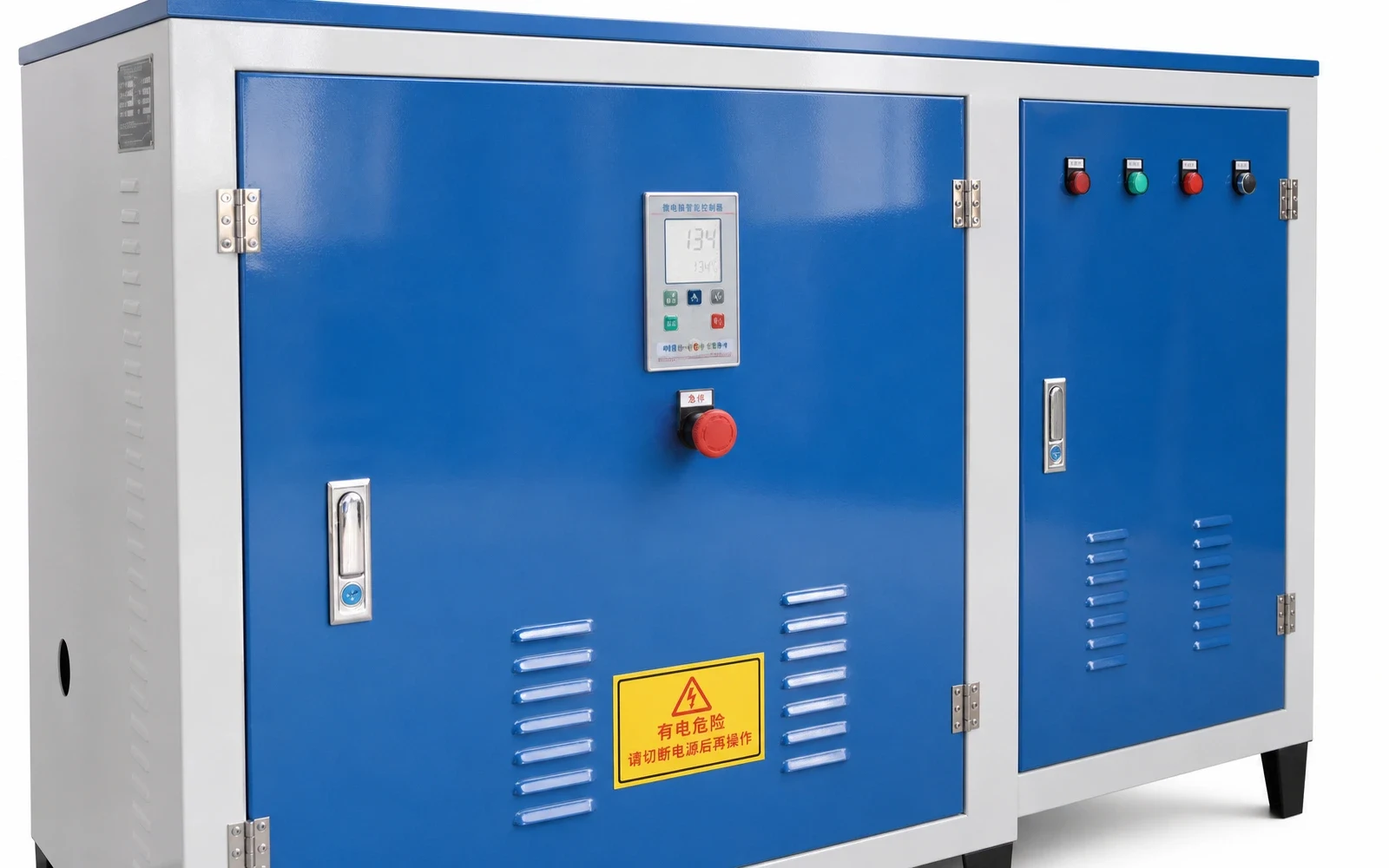

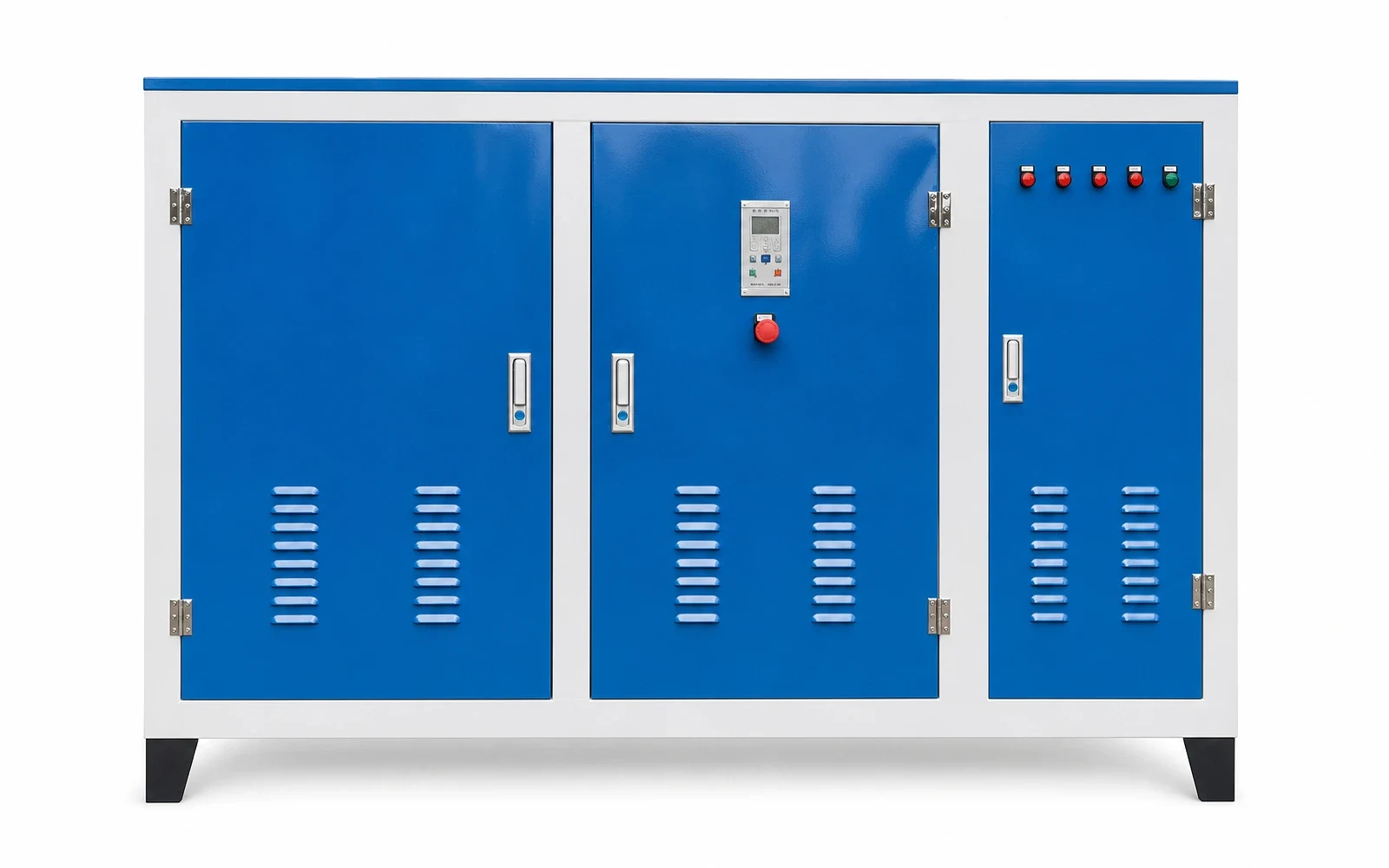

The SIMPLOT electric steam generator provides steam for poultry scalding equipment and selected sanitation duties where the site electrical supply is suitable. Automatic water feed and control interlocks manage the documented operating sequence.
Planning outputs range from approximately 100 to 500 kg of steam per hour, with reference heating powers from 72 to 360 kW. Final output, pressure, electrical load, water treatment and regulatory classification must be confirmed for the destination site.
The selected generator must match simultaneous steam demand, available electrical capacity, feed-water quality and destination pressure-equipment rules.
Planning models cover approximately 100–500 kg/hour.
Supports controlled water replenishment.
Documented functions include low-water and overpressure protection.
Avoids on-site combustion at the generator.
Power, voltage, phases, controls and connection scope are project-specific.
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | LDR Series |
|---|---|
| Planning Steam Output | Approx. 100–500 kg/hour* |
| Reference Working Pressure | Up to approx. 0.7 MPa* |
| Reference Heating Power | Approx. 72 / 144 / 288 / 360 kW* |
| Control | Automatic water feed and PLC/microcomputer control* |
| Safety | Low-water, overtemperature and overpressure interlocks, configuration-dependent |
| Feed Water | Water quality and treatment to be confirmed |
| Electrical Supply | Sized for destination voltage, frequency and available load |
| Customization | Output, pressure, power, pumps, controls and steam connections |
