Scalding Equipment

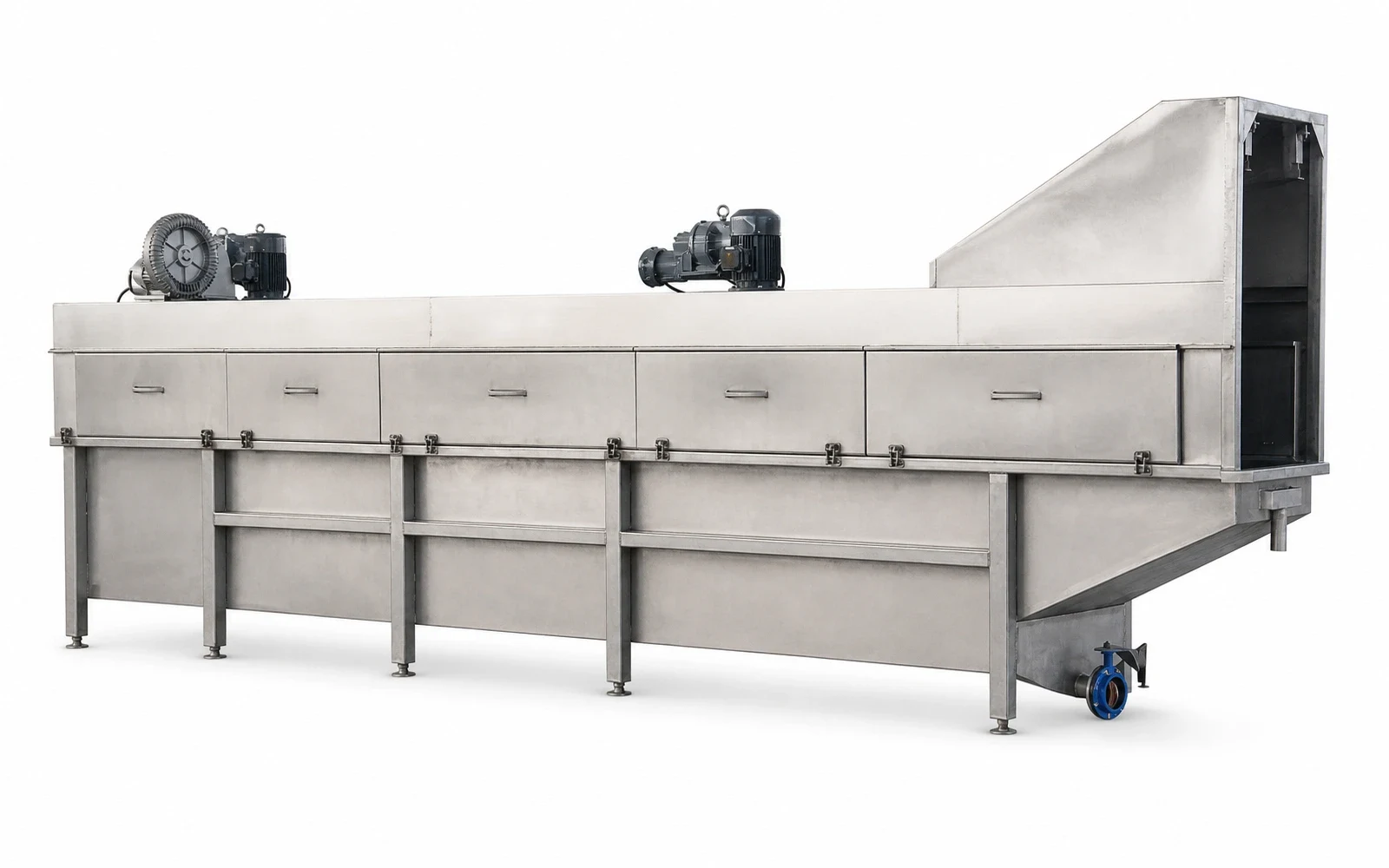

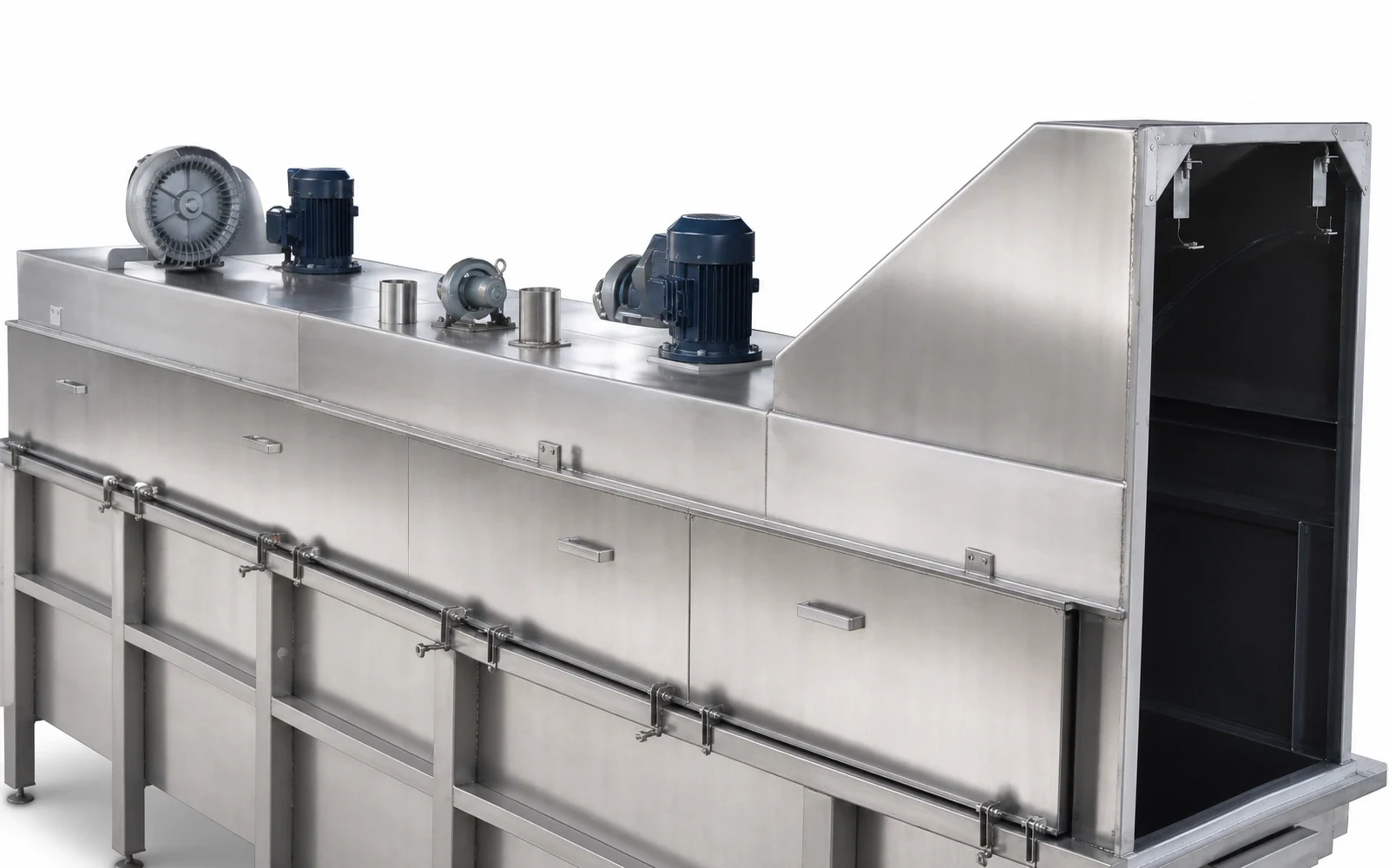

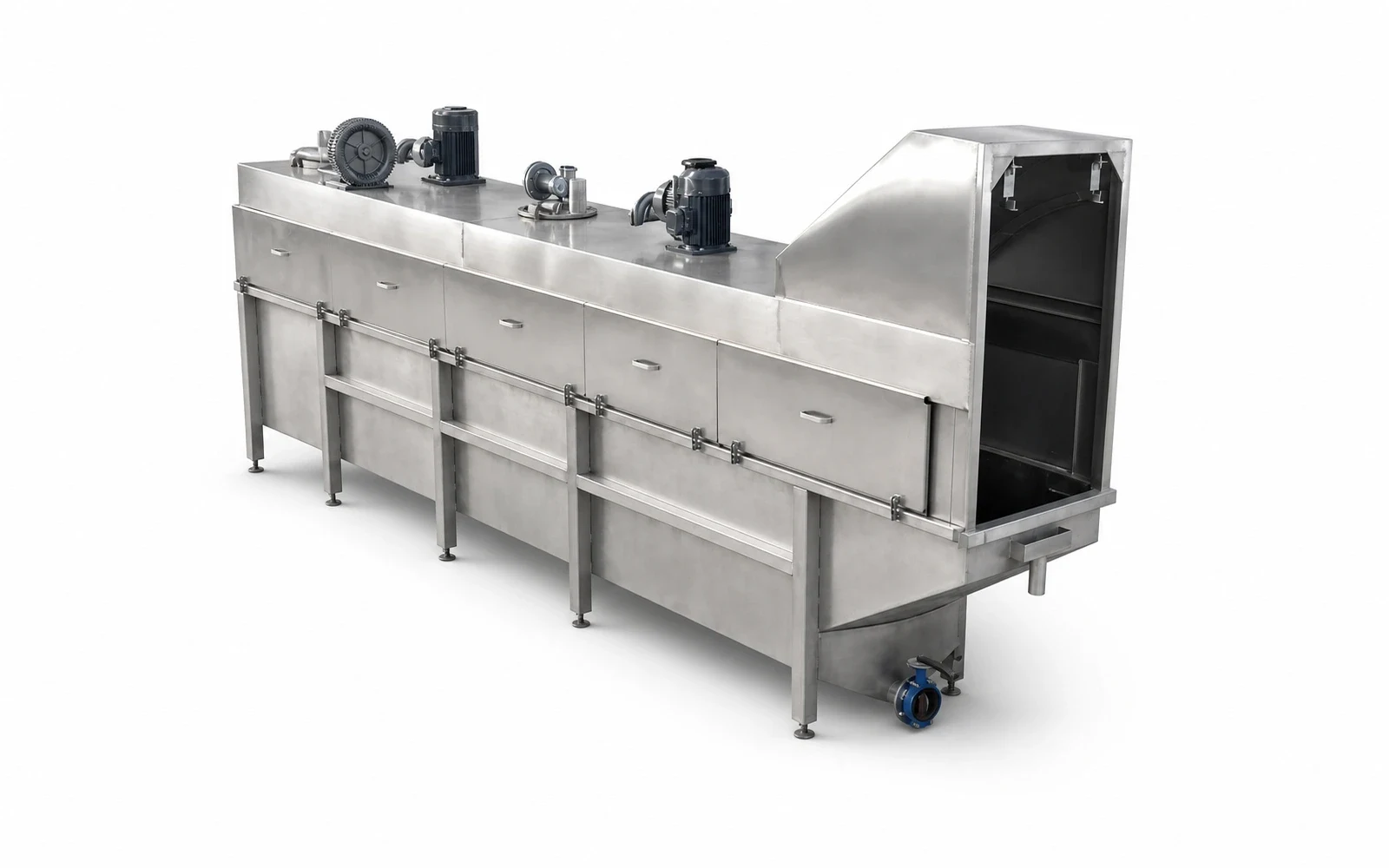

Continuous Poultry Immersion Scalder
A steam-heated, air-agitated immersion scalder designed to connect with an overhead poultry processing line. Tank length, residence time and line speed are configured around bird type, average weight, target throughput and the required skin finish.
- Model
- JS-SC-VERT
- Planning Capacity
- 1,000–5,000 birds/hour*
- Heating Method
- Steam heating*
- Line Interface
- Overhead shackle conveyor
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.
PRODUCT OVERVIEW & WORKING PRINCIPLE
Line-integrated scalding before mechanical plucking
The SIMPLOT continuous poultry immersion scalder is designed for the scalding stage between bleeding and mechanical plucking. Birds remain on the overhead shackle conveyor and travel through heated water for a controlled residence time, reducing manual transfer between processing stages.
Air agitation moves the water around the carcass and helps open the feather layer so that heat can reach the feather follicles more evenly. Tank length, conveyor speed, water movement and operating temperature must be coordinated as one process rather than selected as independent values.
The equipment is configured according to poultry species, average live weight, target birds per hour, required skin appearance, heating utilities and the approved factory layout. Final dimensions, installed power, steam demand and control scope are confirmed in the technical proposal.
Planning note: Published capacity and size ranges describe available project configurations and are not guaranteed values for every installation.
01Line EntryBled birds enter the scalder while remaining suspended on the overhead conveyor.
02Controlled ImmersionConveyor speed and the effective scalding path determine residence time in the heated water.
03Water AgitationAir movement circulates water around the carcass and helps separate the feather layer for heat transfer.
04Transfer to PluckingScalded birds leave the tank and move directly to the matched plucking section.
KEY FEATURES
Built around line speed, bird profile and finished-product requirements
The scalder is specified as part of the complete defeathering process. Its useful configuration depends on the birds, the conveyor and the plucking equipment that follows.
01
Continuous Line Integration
Connects the bleeding and plucking stages without unloading birds from the overhead shackle conveyor.
02
Air-agitated Immersion
Water movement helps immerse the product and improves contact between heated water and the feather layer.
03
Configurable Scalding Path
Tank length and conveyor speed are selected together to provide the required residence time.
04
Steam-heated Configuration
Prepared for project-specific steam heating and temperature-control arrangements.
05
Accessible Tank Sections
Side access panels support inspection, cleaning and routine service of the tank area.
06
Coordinated Line Engineering
Inlet height, outlet position, conveyor pitch and downstream plucker interface are confirmed with the complete layout.
TECHNICAL SPECIFICATIONS
Technical data and configuration
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | JS-SC-VERT |
|---|---|
| Equipment Type | Continuous immersion poultry scalder |
| Poultry Application | Chicken, other poultry subject to process confirmation |
| Planning Capacity | 1,000–5,000 birds/hour* |
| Heating Source | Steam* |
| Overall Dimensions | Approx. 3,000–8,000 × 900 × 2,200 mm (L × W × H), configuration-dependent* |
| Installed Drive / Blower Power | Approx. 2.2–5.5 kW, configuration-dependent* |
| Conveying Method | Integrated overhead shackle conveyor |
| Water Movement | Air agitation / circulation |
| Construction | Stainless-steel equipment body, exact material grades and component scope confirmed in the quotation |
| Upstream Process | Stunning and bleeding section |
| Downstream Process | In-line poultry plucker |
| Electrical Supply | Customized to destination-site standard |
| Final Technical Data | Confirmed after bird, capacity, utility and layout review |
RELATED EQUIPMENT
Build the connected process around this equipment.
Review equipment that can be coordinated as part of a practical meat or poultry processing workflow.
Automatic Poultry Scalding and Plucking Unit
A compact unit coordinating timed bleeding, scalding, transfer and plucking for planning outputs of approximately 300–450 chickens per hour.
Explore Equipment
Dual-Heating Poultry Scalding Tank
A compact batch poultry scalder with electric and gas heating, a motor-driven turning shaft and a planning output of up to approximately 300 chickens per hour.
Explore EquipmentFREQUENTLY ASKED QUESTIONS
Before you request a proposal.
These answers cover common selection questions. Contact us for a review based on your actual project conditions.
The effective length is calculated from the target line speed and required residence time. Bird type, average weight, skin-finish requirement and the following plucking process must also be reviewed.
There is no universal setting. Industry references distinguish soft, medium and hard scalding, but the final temperature and time must be validated for the actual birds, finished product and local food-safety program.
A waterfowl configuration may require different tank width, stronger agitation and a different residence time. Species, weight and feather condition must be confirmed before selection.
No. It is a planning range covering different configurations. The contractual output is confirmed only after the conveyor, scalding path, utilities and connected equipment are sized as one line.
Provide steam availability and pressure, water supply, drainage, electrical standard and compressed-air information where applicable. Exact consumption values are supplied with the approved proposal.
It may be possible after checking conveyor pitch, speed, elevation, direction, shackle geometry, available space and the inlet and outlet interfaces.
