A configurable overhead line connecting poultry-processing stages, with planning capacities from approximately 500 to 10,000 birds per hour.
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.
The SIMPLOT complete overhead poultry processing line provides the conveying backbone for coordinated poultry processing. Depending on the approved project scope, the line can connect stunning, bleeding, scalding, plucking, evisceration, washing, chilling and downstream handling stages.
Track direction, conveyor length, shackle pitch, drive arrangement and process dwell times are engineered around the poultry species, average live weight, target birds per hour and the available building. Frequency-controlled drives allow the operating speed to be commissioned with the connected equipment.
Planning capacities range from approximately 500 to 10,000 birds per hour. Final output, equipment quantity, utilities and material scope are confirmed in the project-specific technical proposal. Custom layouts are available.
Capacity, track route, shackle pitch, dwell times and connected equipment are engineered as one project around the building and process target.
Available planning configurations cover approximately 500–10,000 birds per hour.
Provides continuous transfer between selected primary-processing stages.
Conveyor speed can be adjusted during commissioning to match the process.

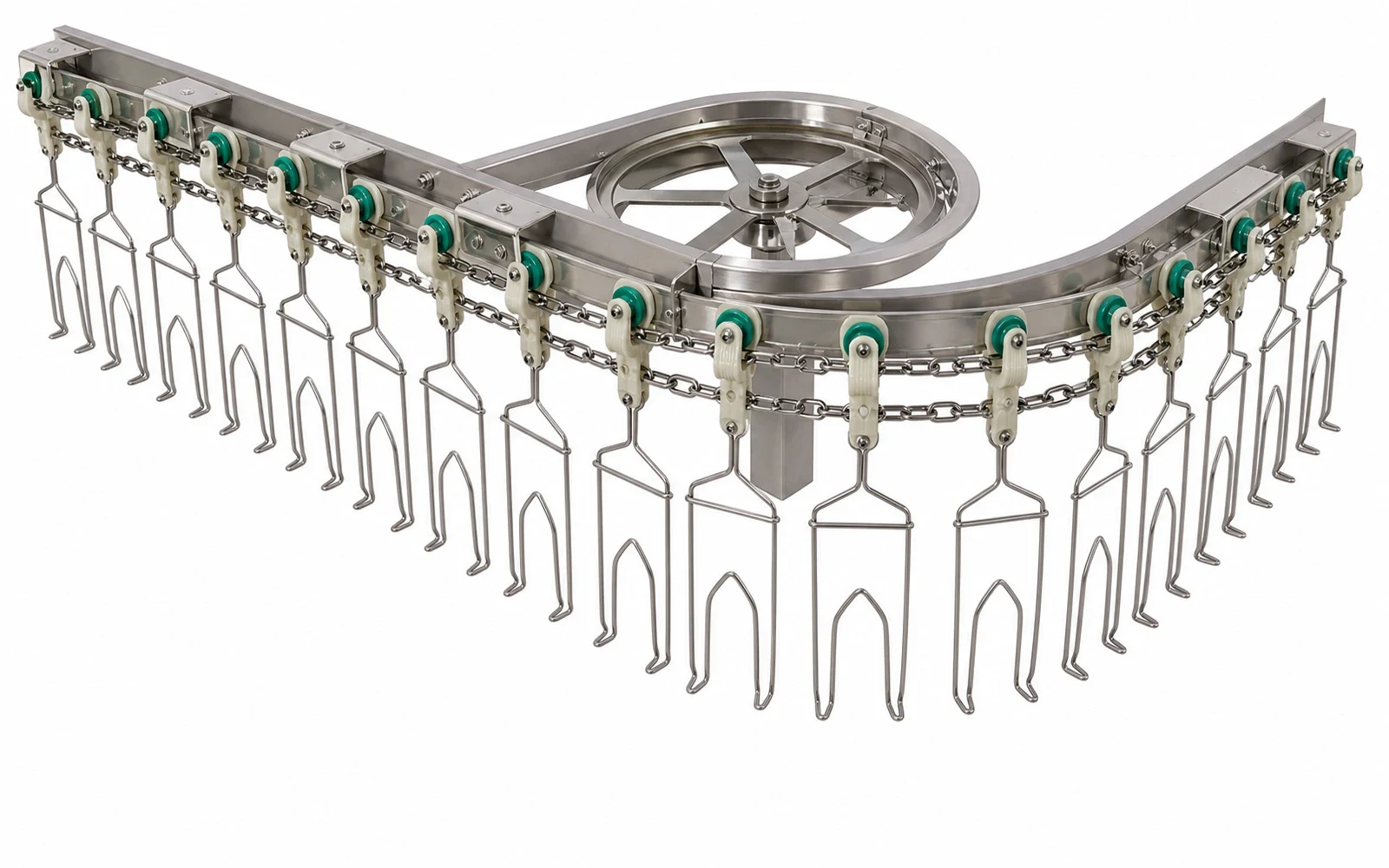

Straight sections, corner wheels and elevations are arranged for the approved factory.

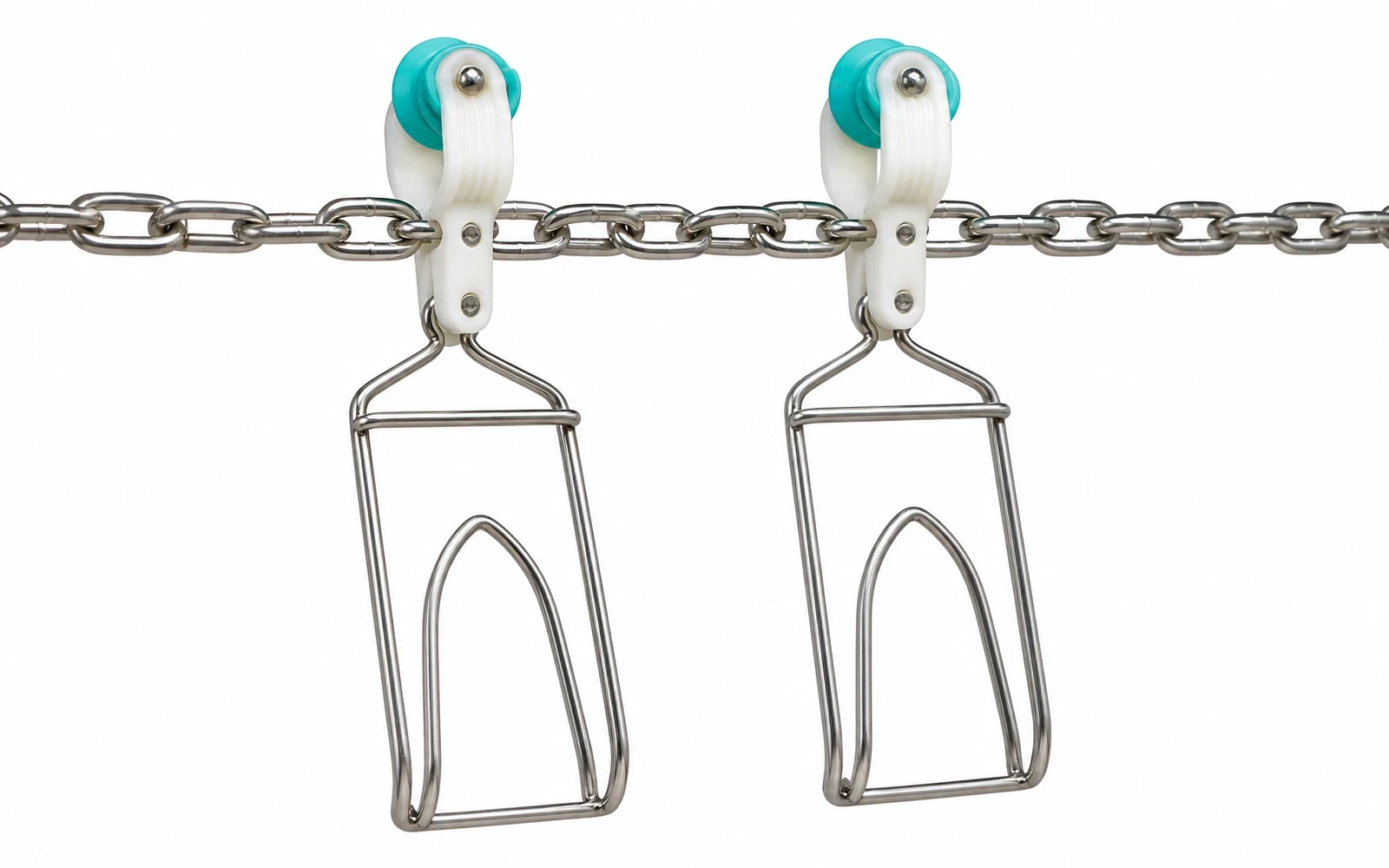

Shackle type and pitch are selected for the target poultry and process.
The line can be supplied as a conveyor package or as part of a complete processing system.
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | JS-SL Series |
|---|---|
| Planning Capacity | Approx. 500–10,000 birds/hour* |
| Available Models | JS-SL2000 / JS-SL5000, final selection depends on the approved project |
| Line Length | Approx. 30–300 m, layout-dependent* |
| Drive Power | Approx. 2.2–4.0 kW per drive unit* |
| Speed Control | Variable-frequency control |
| Standard Shackle Pitch | 152.4 mm or 203.2 mm, custom pitch available |
| Track Options | Closed track, T-profile track or project-specific stainless track |

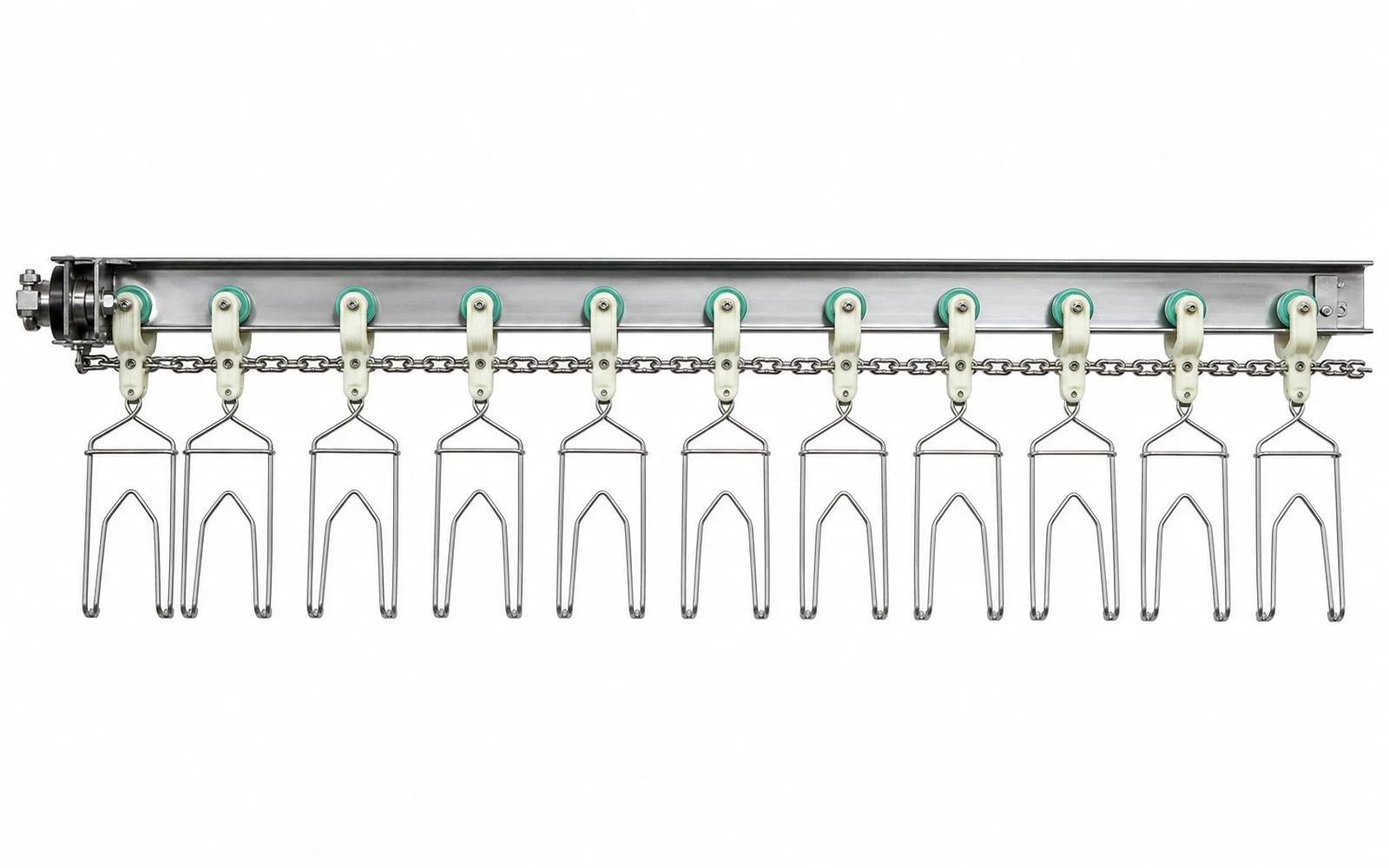

| Main Components | Drive, tensioner, trolley chain, corner wheels, support structure and shackles |
| Poultry Application | Chicken, duck, goose, turkey and other poultry subject to confirmation |
| Material Scope | Food-contact and structural materials confirmed in the quotation |
| Electrical Supply | Customized to destination-site voltage and frequency |
| Final Configuration | Confirmed after process and layout review |
