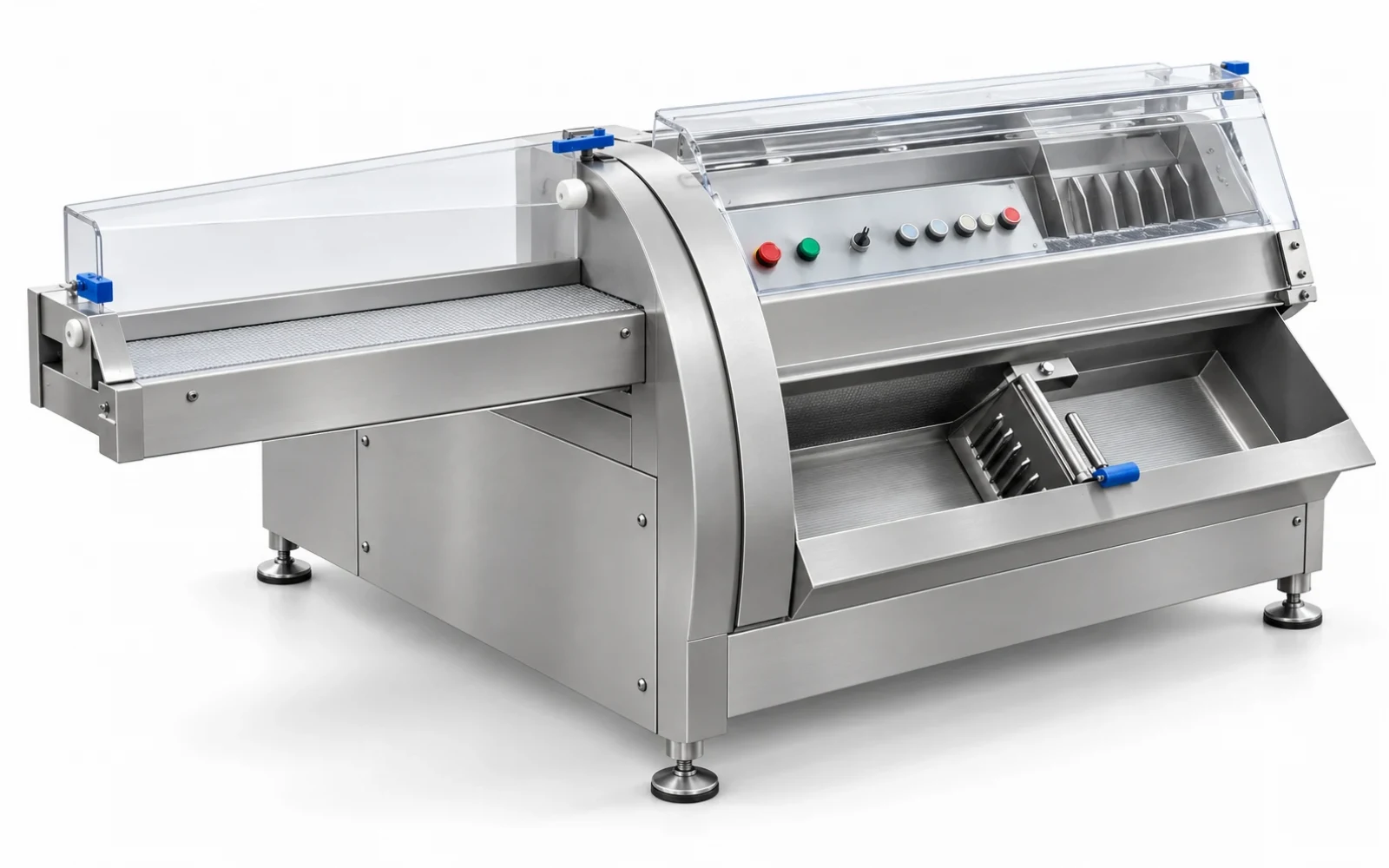

Automatic Slicing and Chopping Machine
Programmable slicing and chopping machine for chilled or frozen meat, ribs, bacon and similar products, with conveyor feeding and a 2–32 mm QR-25K reference range.
Explore Equipment
Cutting & Processing
Industrial Bone Saw

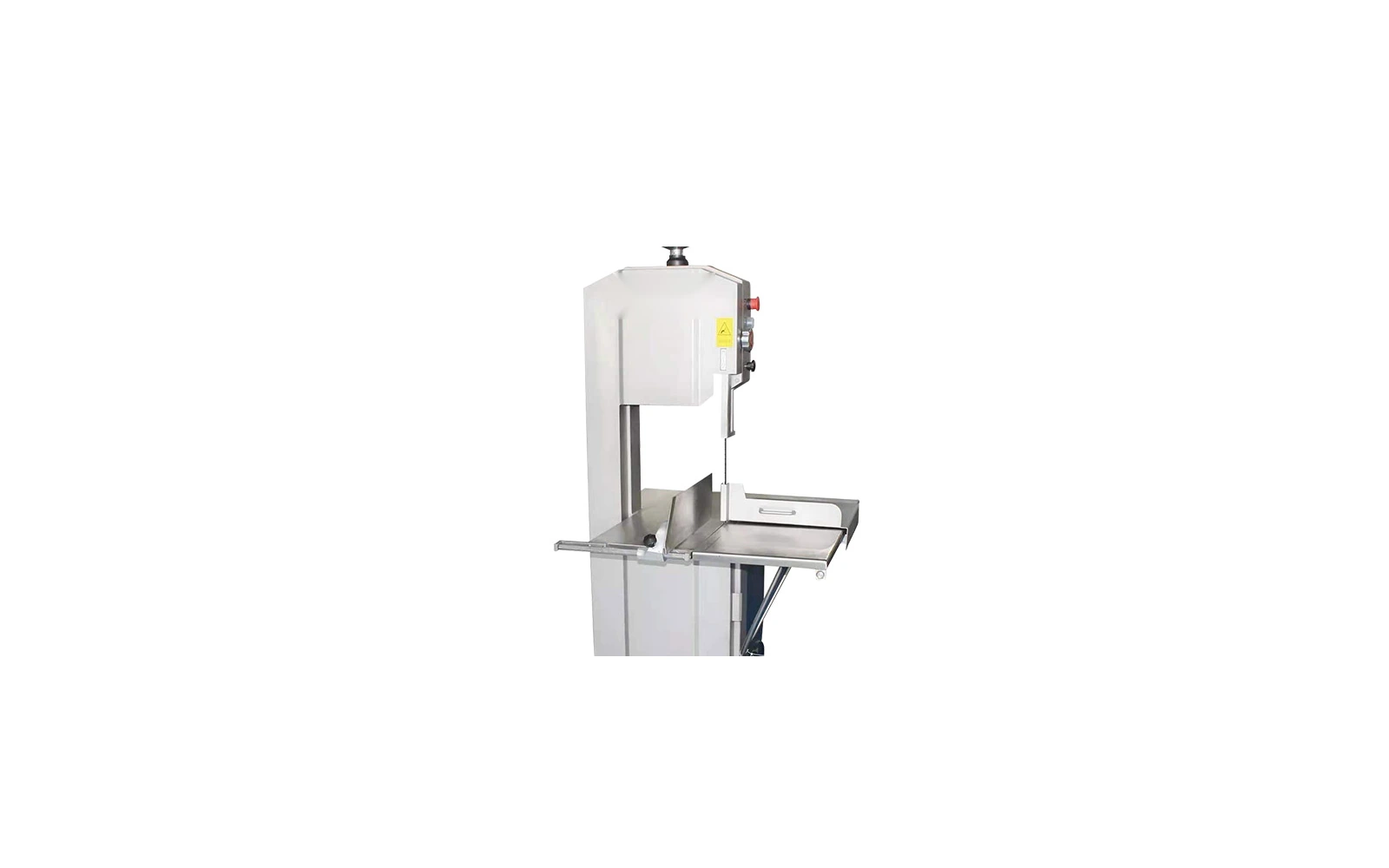

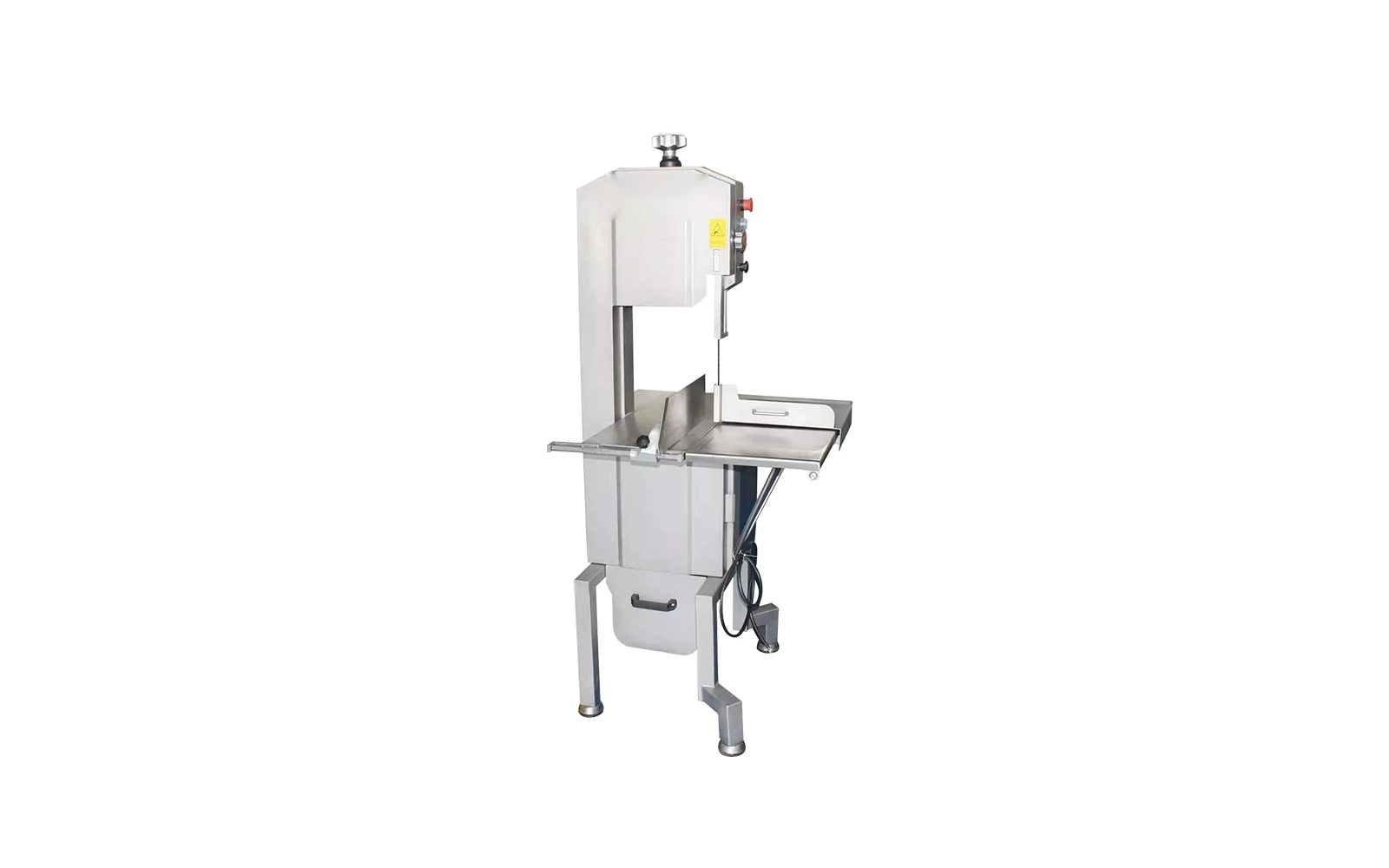

Floor-standing QR-350 stainless-steel bone saw with a 350 × 290 mm cutting opening, adjustable blade tension and a large worktable for bone-in meat and frozen products.
- Model
- QR-350
- Model
- QR-350
- Cutting Opening
- 350 × 290 mm
- Motor Power
- 2.2 kW
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.
PRODUCT OVERVIEW & WORKING PRINCIPLE
Controlled portioning of bone-in meat and frozen products
The QR-350 industrial bone saw is designed for controlled manual portioning of bone-in meat, frozen meat blocks and similar food products. A vertical band-saw blade passes through the stainless-steel worktable, while the product guide helps position the required cut.
Blade tension, product support and operator technique directly affect cut quality and safety. The machine must be operated with the supplied guard, pusher and local safety procedures. It is not an unattended automatic cutter.
01Set the GuideAdjust the product guide for the required portion thickness.
02Position ProductSupport the product securely on the worktable.
03Make the CutUse the approved pusher and operating procedure to guide the product.
04Stop and CleanIsolate power before blade inspection or cleaning.
KEY FEATURES
Robust band-saw cutting with a large work area
The machine is intended for trained operators working under documented guarding, cleaning and blade-handling procedures.
01
Large Cutting Opening
A 350 × 290 mm opening accommodates substantial portions.
02
Stainless Worktable
The 710 × 720 mm table supports product handling.
03
Blade-Tension Adjustment
The mechanism allows correct band-saw setup.
04
Stainless Blade Wheel
The source material states a stainless-steel blade wheel.
05
Floor-Standing Body
Designed for meat shops and processing rooms.
06
Operator Controls
The shown configuration includes a side control station and foot switch.
TECHNICAL SPECIFICATIONS
Technical data and configuration
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | QR-350 |
|---|---|
| Model | QR-350 |
| Voltage | 380 V, three phase |
| Motor Power | 2.2 kW |
| Saw Blade | 2400 × 16 mm |
| Cutting Opening | 350 × 290 mm |
| Worktable | 710 × 720 mm |
| Overall Dimensions | 760 × 720 × 1700 mm |
| Machine Weight | 135 kg |
RELATED EQUIPMENT
Build the connected process around this equipment.
Review equipment that can be coordinated as part of a practical meat or poultry processing workflow.
Industrial Meat Dicing Machine
Hydraulic meat dicing machine for fresh, chilled and tempered meat, configurable for cubes, strips or slices with replaceable cutter grids.
Explore Equipment
Fresh Meat Slicer
Compact QR-200 fresh meat slicer with a removable blade group, an installed 3.5 mm cutter set and a rated capacity of 250 kg/h.
Explore EquipmentFREQUENTLY ASKED QUESTIONS
Before you request a proposal.
These answers cover common selection questions. Contact us for a review based on your actual project conditions.
Yes, subject to product size, hardness and a safe holding method.
No. The product guide and operator positioning determine the cut.
Confirm the supplied blade length, width, tooth pattern and quantity.
No. It is a manually operated floor-standing band saw for trained personnel.
