Fresh Meat Slicer
Compact QR-200 fresh meat slicer with a removable blade group, an installed 3.5 mm cutter set and a rated capacity of 250 kg/h.
- Model
- QR-200
- Model
- QR-200
- Rated Capacity
- 250 kg/h*
- Installed Cut Size
- 3.5 mm*
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.
PRODUCT OVERVIEW & WORKING PRINCIPLE
Compact slicing for boneless fresh meat

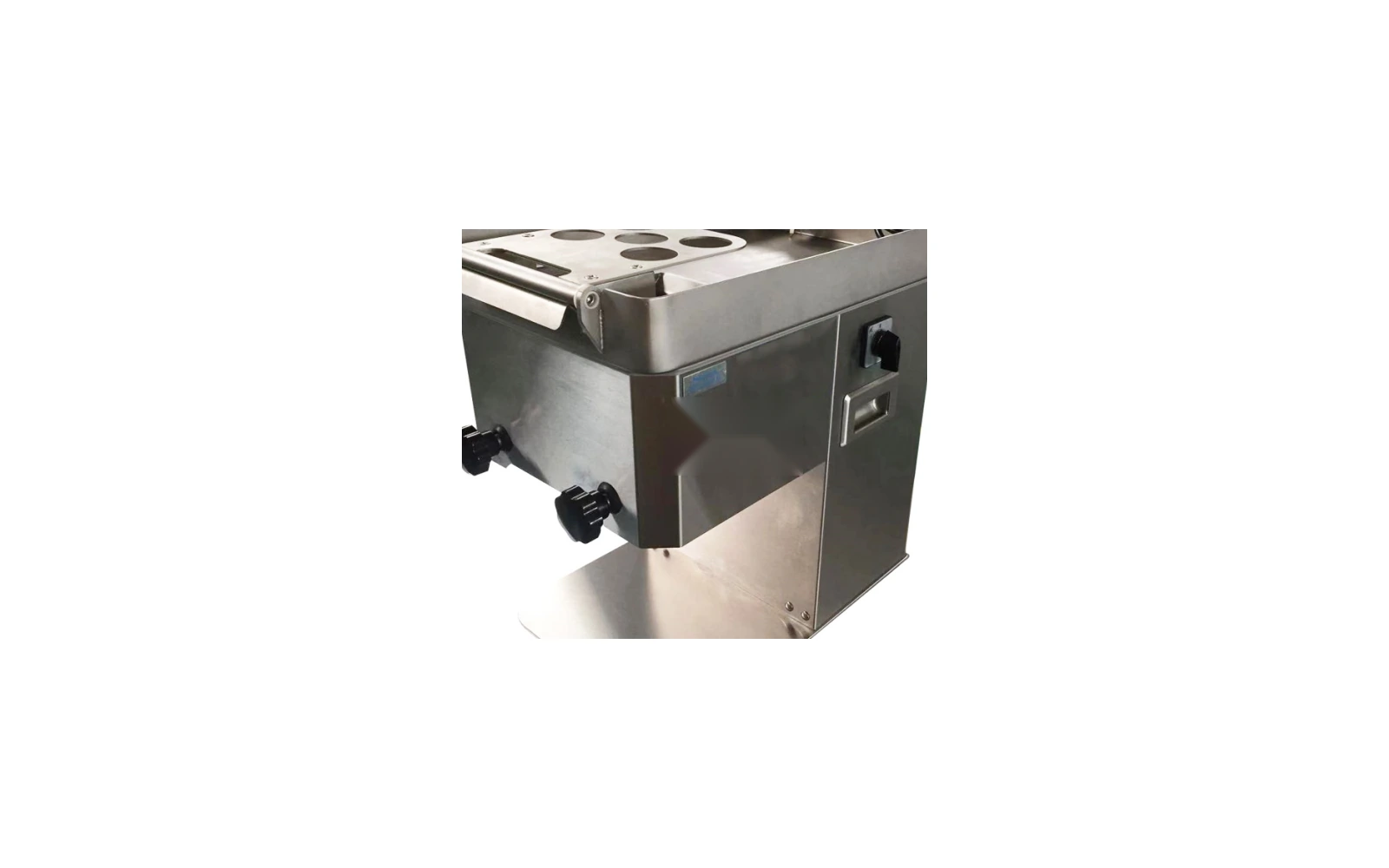

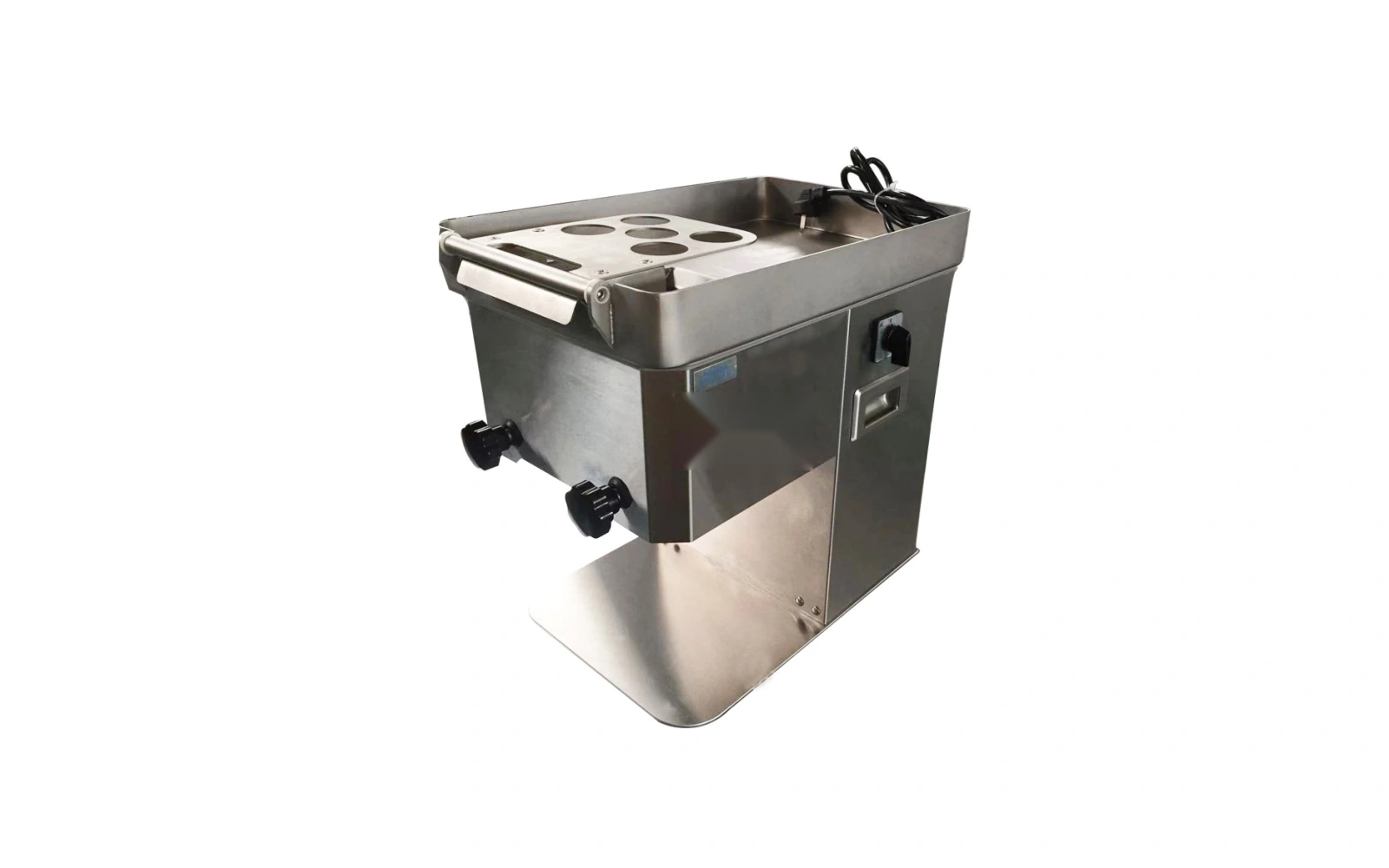

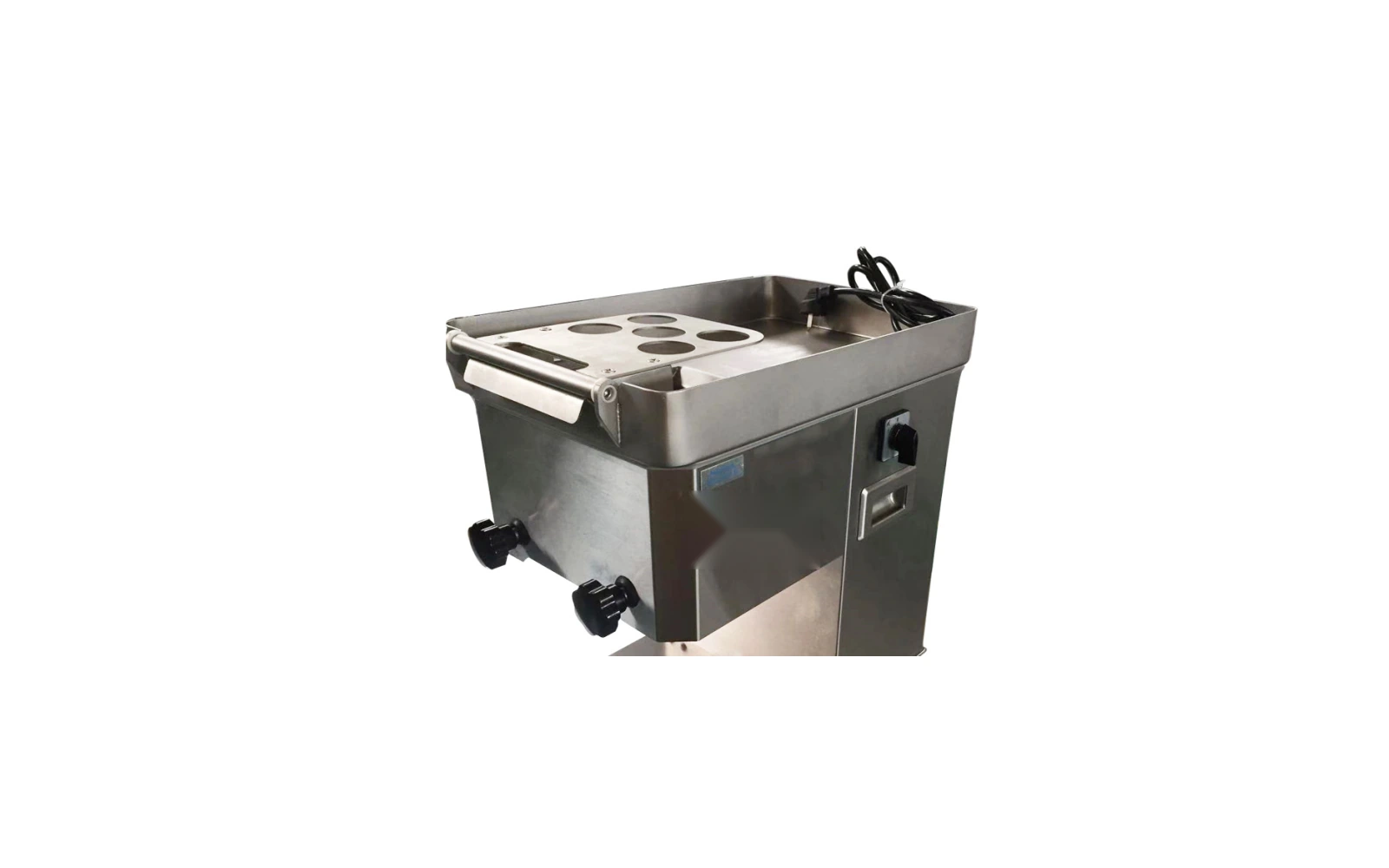

The QR-200 is a compact slicer for boneless fresh meat. Product is loaded through the top opening, cut by the removable blade group and discharged from the front. Its small footprint suits supermarkets, restaurants, central kitchens and small food-processing rooms.
The source technical sheet states a 3.5 mm cut size. This is treated as the installed cutter specification rather than an infinitely adjustable setting unless additional blade groups are confirmed.
01Prepare ProductConfirm boneless fresh meat and suitable feed dimensions.
02Load from the TopFeed product through the guarded top opening.
03Slice ProductThe installed cutter group produces the specified thickness.
04Collect and CleanCollect the front discharge and remove the cutter group for cleaning.
KEY FEATURES
A small-footprint slicer for daily fresh-meat preparation
The compact single-phase configuration is suited to smaller production rooms that require a fixed cutter format.
01
Compact Body
The machine measures 320 × 470 × 490 mm.
02
Removable Cutter Group
The independent blade assembly supports cleaning.
03
Stainless-Steel Frame
The source material states SUS304 construction.
04
Stable Drive
Nylon gears are intended for stable, lower-noise operation.
05
Cover Safety Switch
The source states a cover-open stop function.
06
Single-Phase Supply
The documented configuration uses 220 V single phase.
TECHNICAL SPECIFICATIONS
Technical data and configuration
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | QR-200 |
|---|---|
| Model | QR-200 |
| Rated Capacity | 250 kg/h* |
| Motor Power | 0.37 kW |
| Voltage | 220 V, single phase, 50 Hz |
| Installed Cut Size | 3.5 mm* |
| Overall Dimensions | 320 × 470 × 490 mm |
| Machine Weight | 45 kg |
| Product | Boneless fresh meat, subject to testing |
RELATED EQUIPMENT
Build the connected process around this equipment.
Review equipment that can be coordinated as part of a practical meat or poultry processing workflow.
Industrial Meat Dicing Machine
Hydraulic meat dicing machine for fresh, chilled and tempered meat, configurable for cubes, strips or slices with replaceable cutter grids.
Explore Equipment
Meat Strip Cutter
Conveyor-fed strip cutter for boneless fresh meat, poultry, fish and prepared products, with 300 or 500 mm belt options and customized cutter spacing.
Explore EquipmentFREQUENTLY ASKED QUESTIONS
Before you request a proposal.
These answers cover common selection questions. Contact us for a review based on your actual project conditions.
The displayed configuration uses a 3.5 mm cutter. Other sizes require confirmation of compatible replacement blade groups.
No. It is intended for boneless fresh meat.
Product temperature, feed size, operator loading and cutter condition.
The independent cutter group is removed and cleaned under the approved sanitation procedure.
