Online Automatic Poultry Head Cutter
An in-line poultry head cutter with neck guides and an adjustable cutting assembly for overhead lines planned at approximately 1,000–5,000 birds per hour.
- Model
- JS-CC-HEAD
- Planning Capacity
- 1,000–5,000 birds/hour*
- Installed Power
- Approx. 1.1 kW*
- Line Interface
- Overhead conveyor
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.
PRODUCT OVERVIEW & WORKING PRINCIPLE
Guided in-line head removal for overhead poultry conveyors

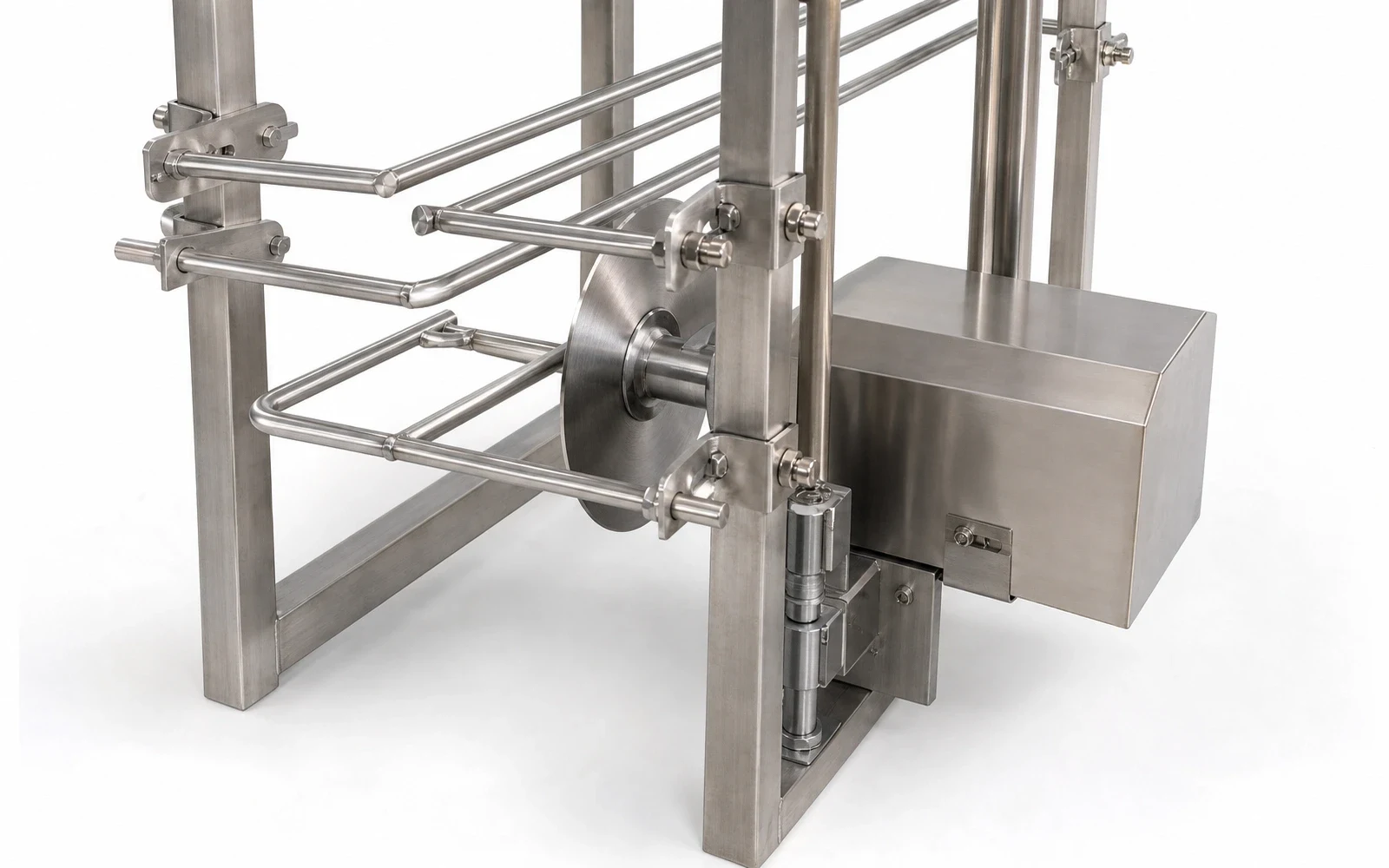

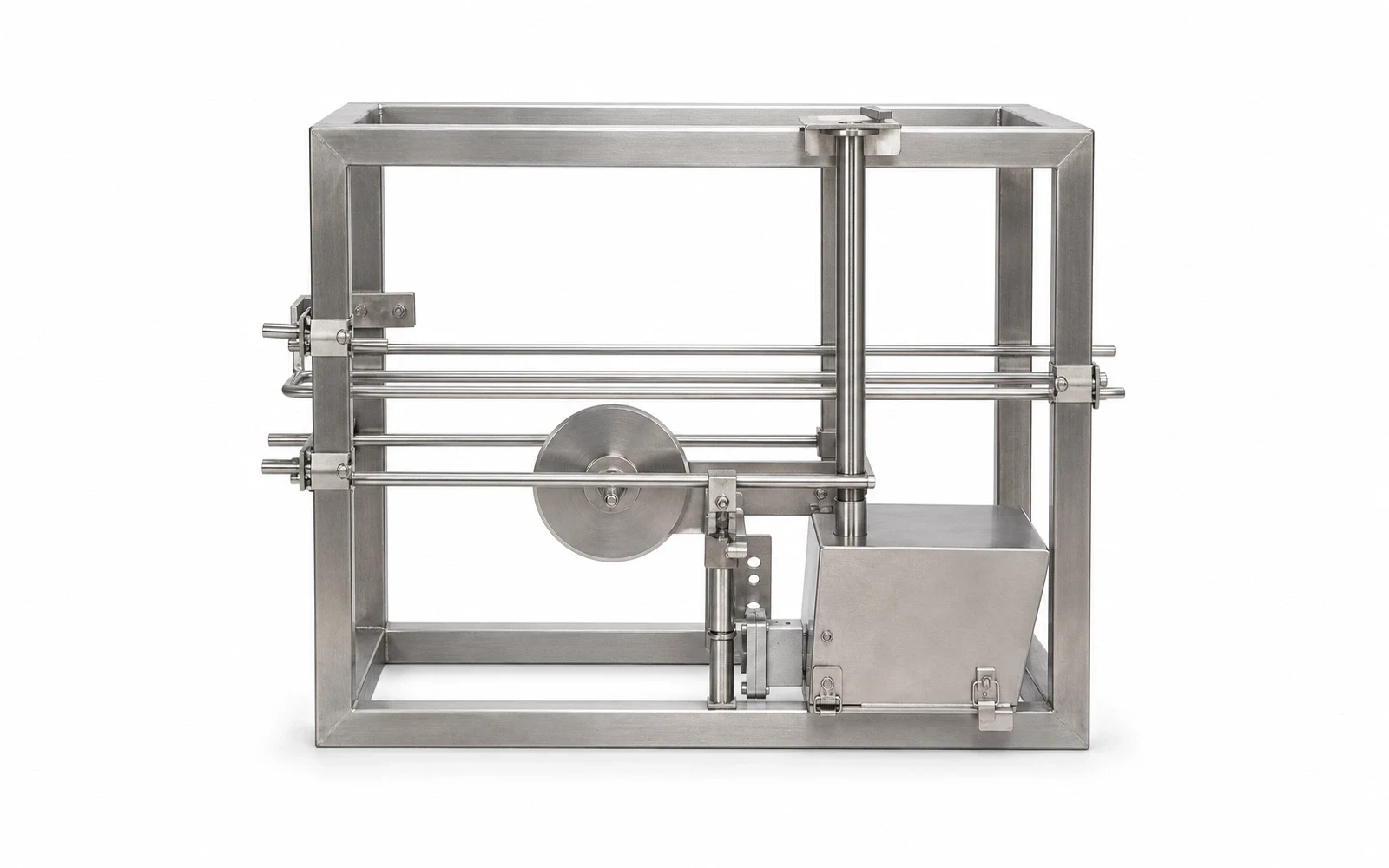

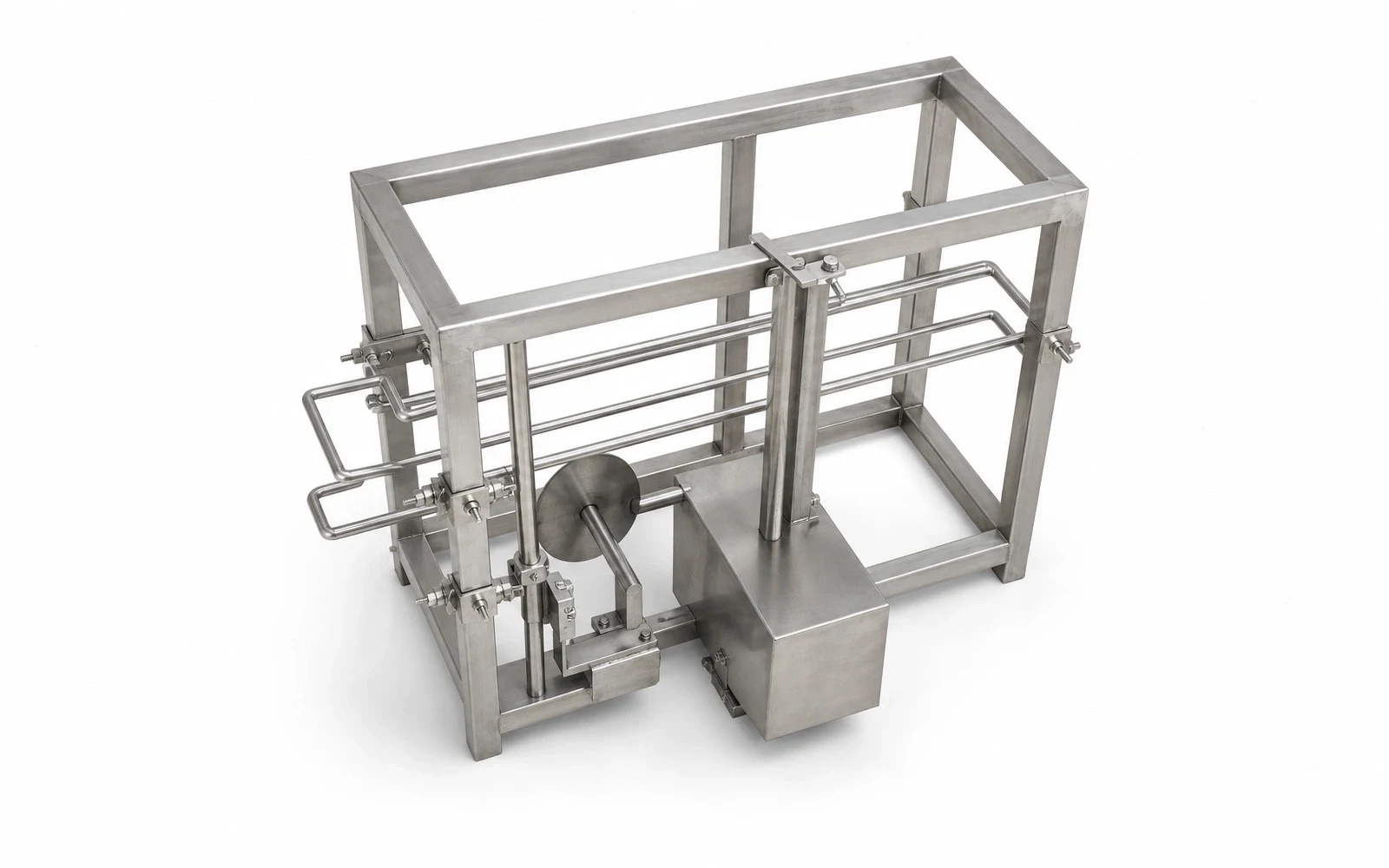

The SIMPLOT automatic poultry head cutter uses parallel guide rails to direct and extend the neck as the bird travels on the overhead conveyor. The cutting assembly separates the head at the commissioned position, while a lower chute guides the removed product away.
Planning configurations cover approximately 1,000–5,000 birds per hour. Guide spacing, cutting position, frame height, guards and electrical supply can be customized around the line and bird profile.
KEY FEATURES
Guided in-line cutting configured around the conveyor
Guide position, cutting height, blade guarding and discharge are commissioned together for the bird profile and existing overhead line.
01
Continuous In-line Cutting
Operates without unloading birds from the shackles.
02
Parallel Neck Guides
Guide the neck toward the cutting point.
03
Adjustable Cutting Position
Setup is matched to bird size and required result.
04
Integrated Chute
Directs removed heads to collection.
05
Custom Conveyor Interface
Elevation, pitch, direction and guards are project-specific.
TECHNICAL SPECIFICATIONS
Technical data and configuration
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | JS-CC-HEAD |
|---|---|
| Planning Capacity | Approx. 1,000–5,000 birds/hour* |
| Cutting Assembly | Straight or rotary blade group, configuration-dependent |
| Installed Power | Approx. 1.1 kW* |
| Interface | Overhead shackle conveyor |
| Discharge | Stainless collection chute |
| Customization | Frame, guides, blade, guards, voltage and discharge direction |
RELATED EQUIPMENT
Build the connected process around this equipment.
Review equipment that can be coordinated as part of a practical meat or poultry processing workflow.
Complete Overhead Poultry Processing Line
A configurable overhead line connecting poultry-processing stages, with planning capacities from approximately 500 to 10,000 birds per hour.
Explore Equipment
Poultry Lung Vacuum Extraction Machine
A mobile poultry lung extraction system using a liquid-ring vacuum pump, separator tank and dual suction guns, planned for approximately 600–1,200 birds per hour.
Explore EquipmentFREQUENTLY ASKED QUESTIONS
Before you request a proposal.
These answers cover common selection questions. Contact us for a review based on your actual project conditions.
Yes, after reviewing conveyor geometry.
It is the upper planning range.
Guide and cutting position can be commissioned.
Possible configurations require confirmation of neck size and line setup.
