Online Automatic Poultry Paw Cutter
An in-line poultry paw cutting unit using a positioning star wheel and rotary blade, configurable for overhead lines from approximately 1,000 to 5,000 birds per hour.
- Model
- JS-CC-PAW
- Planning Capacity
- 1,000–5,000 birds/hour*
- Blade
- Approx. Φ300 mm rotary blade*
- Line Interface
- Overhead shackle conveyor
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.
PRODUCT OVERVIEW & WORKING PRINCIPLE
In-line poultry paw cutting with guided joint positioning

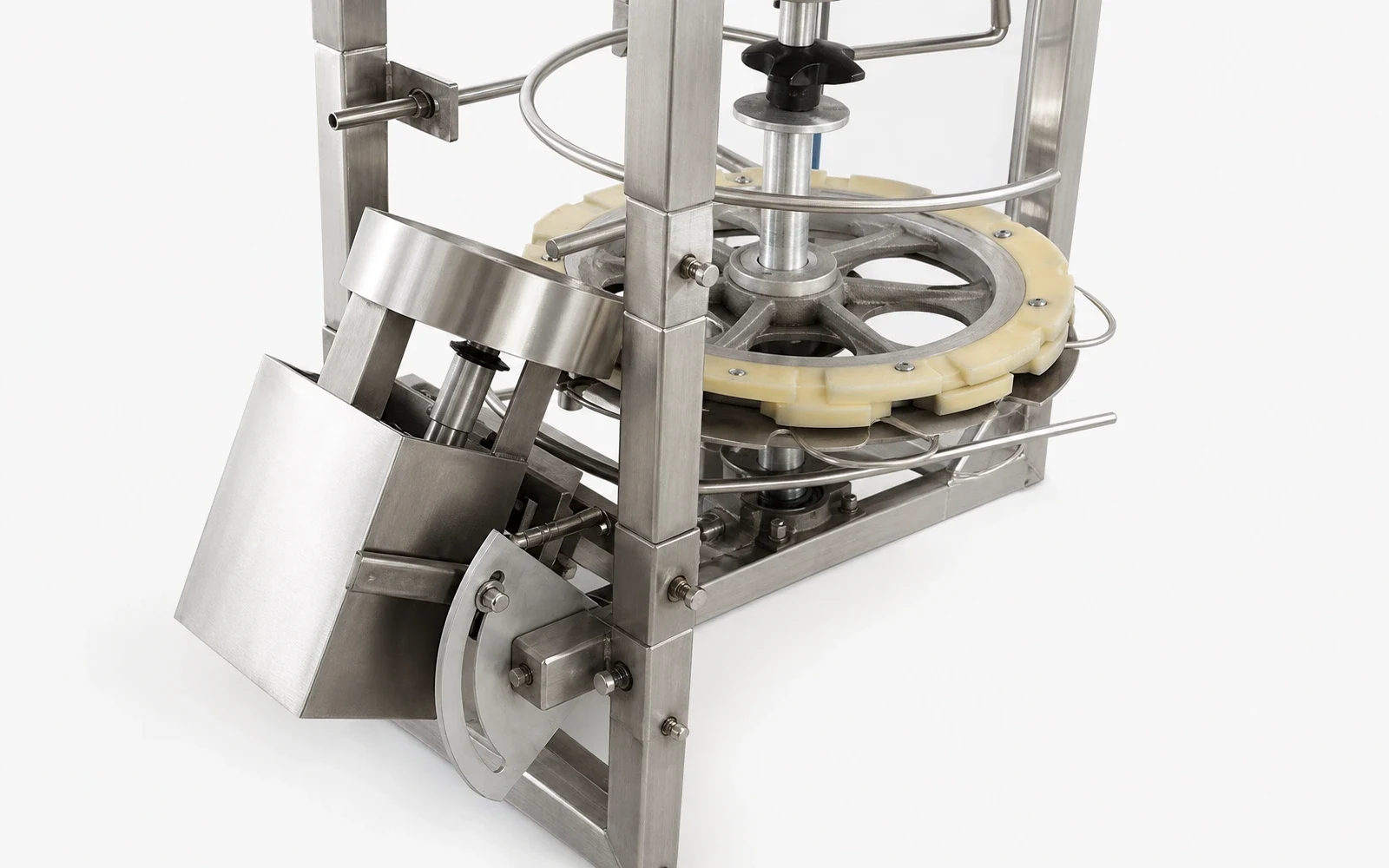

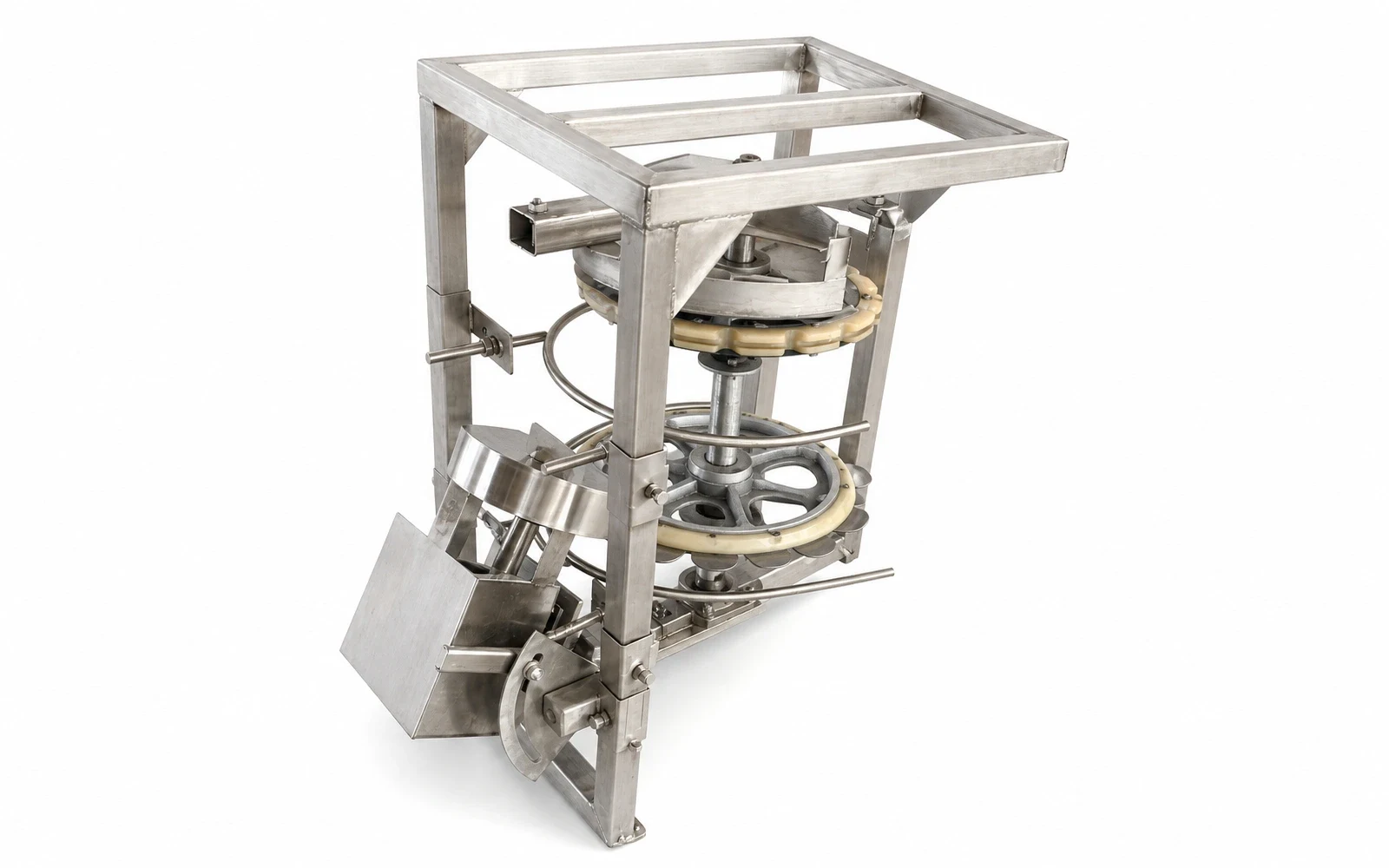

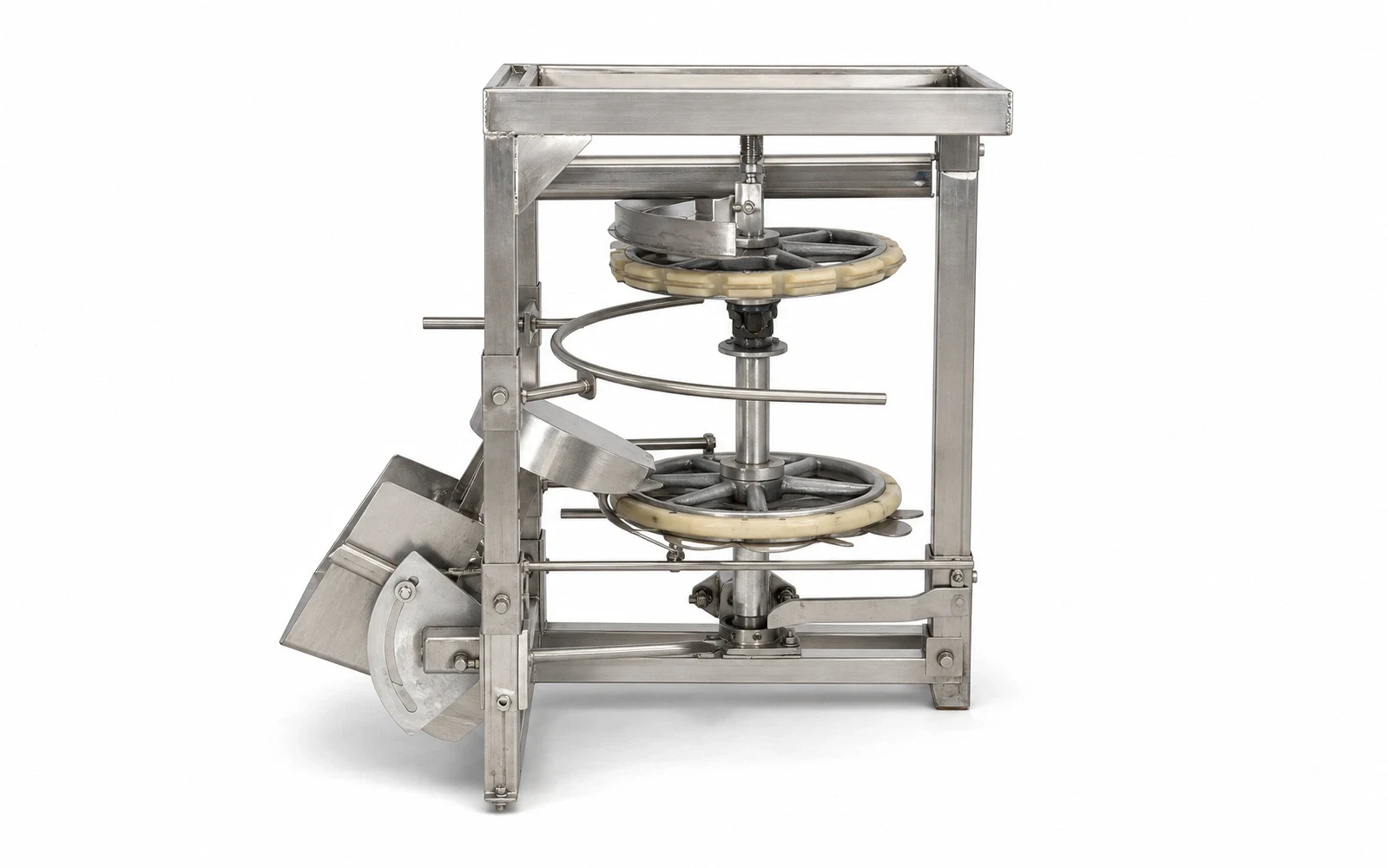

The SIMPLOT automatic paw cutter mounts along an overhead poultry conveyor. A shaped positioning wheel guides the ankle area toward the rotary blade so paws can be separated continuously without unloading the carcass.
Blade height and feed angle are adjusted during commissioning for the actual shackle geometry and bird size. Planning capacity is approximately 1,000–5,000 birds per hour; final line speed, guards and interfaces are project-specific.
KEY FEATURES
Guided in-line cutting configured around the conveyor
Joint positioning, blade height, guarding and discharge are commissioned together for the bird profile and overhead-line geometry.
01
In-line Operation
Cuts paws while birds remain on the overhead conveyor.
02
Joint Positioning
A shaped wheel guides the ankle toward the cutting point.
03
Adjustable Blade Position
Height and angle are set during commissioning.
04
Dedicated Discharge
Cut paws can be directed to a collection chute.
05
Custom Line Interface
Frame, elevation, voltage and conveyor connection are project-specific.
TECHNICAL SPECIFICATIONS
Technical data and configuration
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | JS-CC-PAW |
|---|---|
| Planning Capacity | Approx. 1,000–5,000 birds/hour* |
| Blade | Approx. Φ300 mm alloy rotary blade* |
| Installed Power | Approx. 1.5 kW* |
| Interface | Overhead shackle conveyor |
| Adjustment | Blade height and feed angle |
| Material / Guards | Confirmed in proposal |
| Customization | Capacity, frame, elevation, voltage, blade and chute |
RELATED EQUIPMENT
Build the connected process around this equipment.
Review equipment that can be coordinated as part of a practical meat or poultry processing workflow.
Complete Overhead Poultry Processing Line
A configurable overhead line connecting poultry-processing stages, with planning capacities from approximately 500 to 10,000 birds per hour.
Explore Equipment
Offal and By-Product Screw Chiller
A compact screw chiller for poultry feet, wings, gizzards and small products, with planning capacities of approximately 500–2,000 kg per hour.
Explore EquipmentFREQUENTLY ASKED QUESTIONS
Before you request a proposal.
These answers cover common selection questions. Contact us for a review based on your actual project conditions.
Yes, after checking the conveyor and shackles.
Bird size, shackle stability, positioning, blade condition and commissioning all affect the result.
Blade position is commissioned for the target joint.
The required guarding scope is confirmed for the destination standard.
PROJECT CONFIGURATIONConfirm the right equipment
