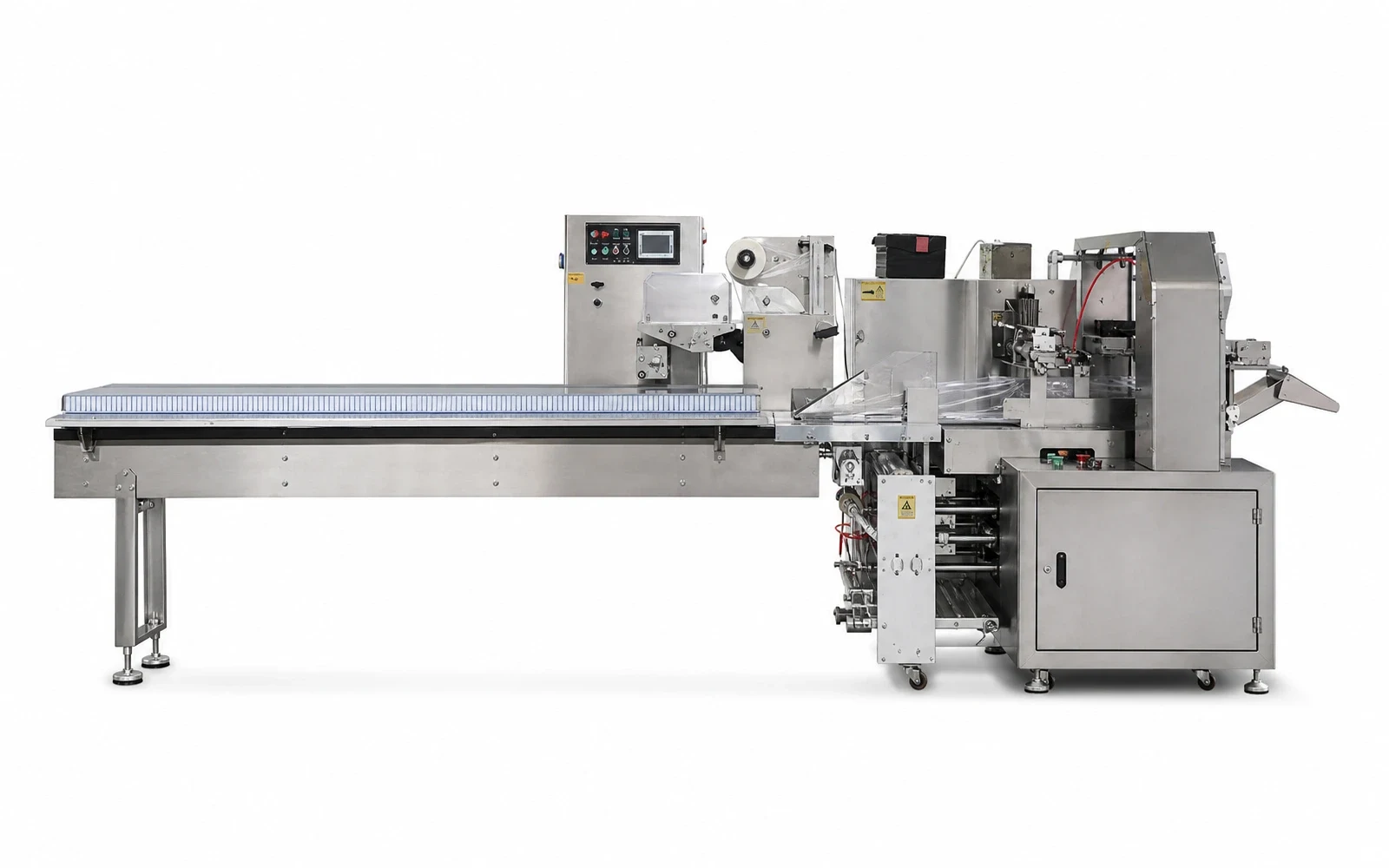

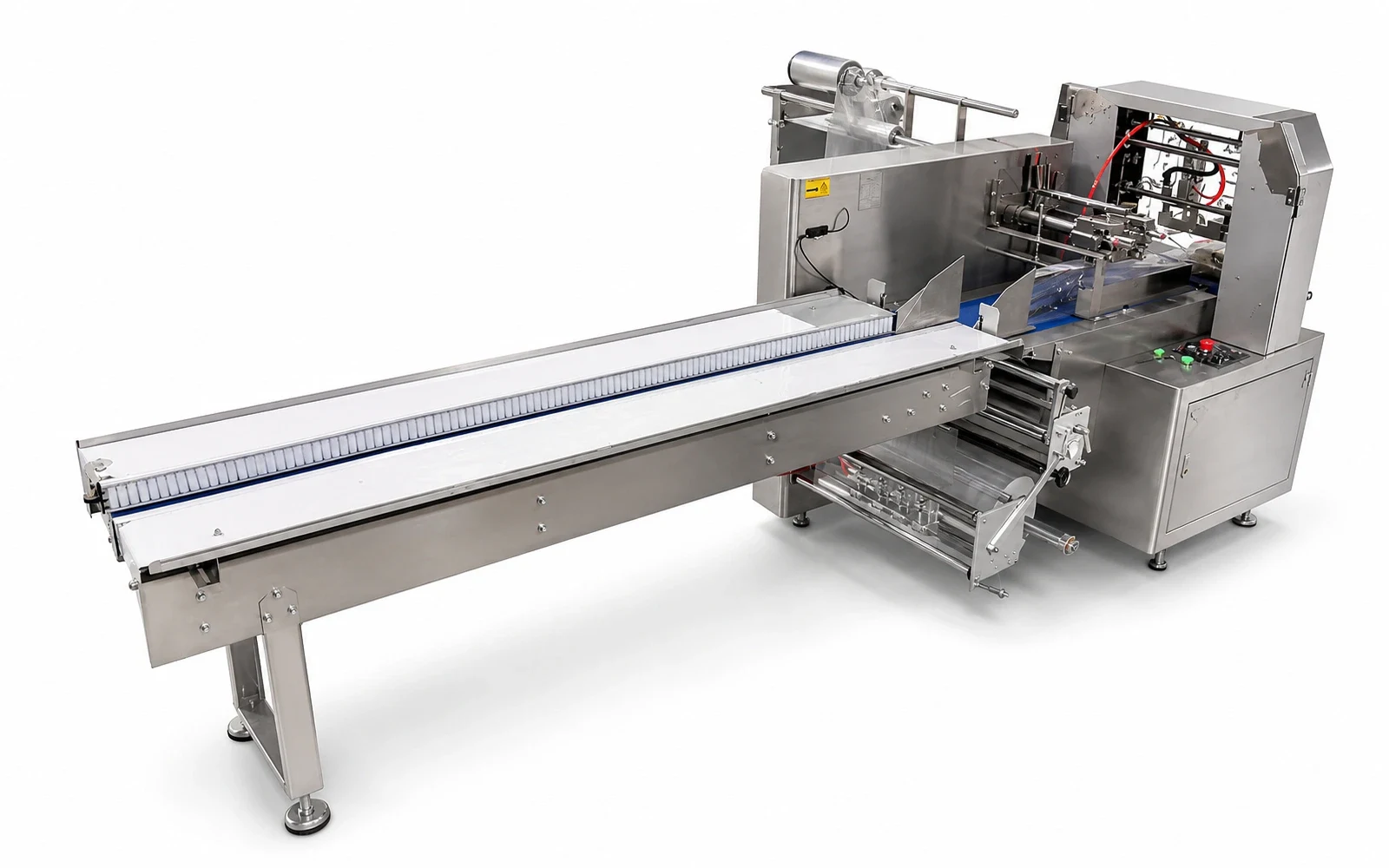

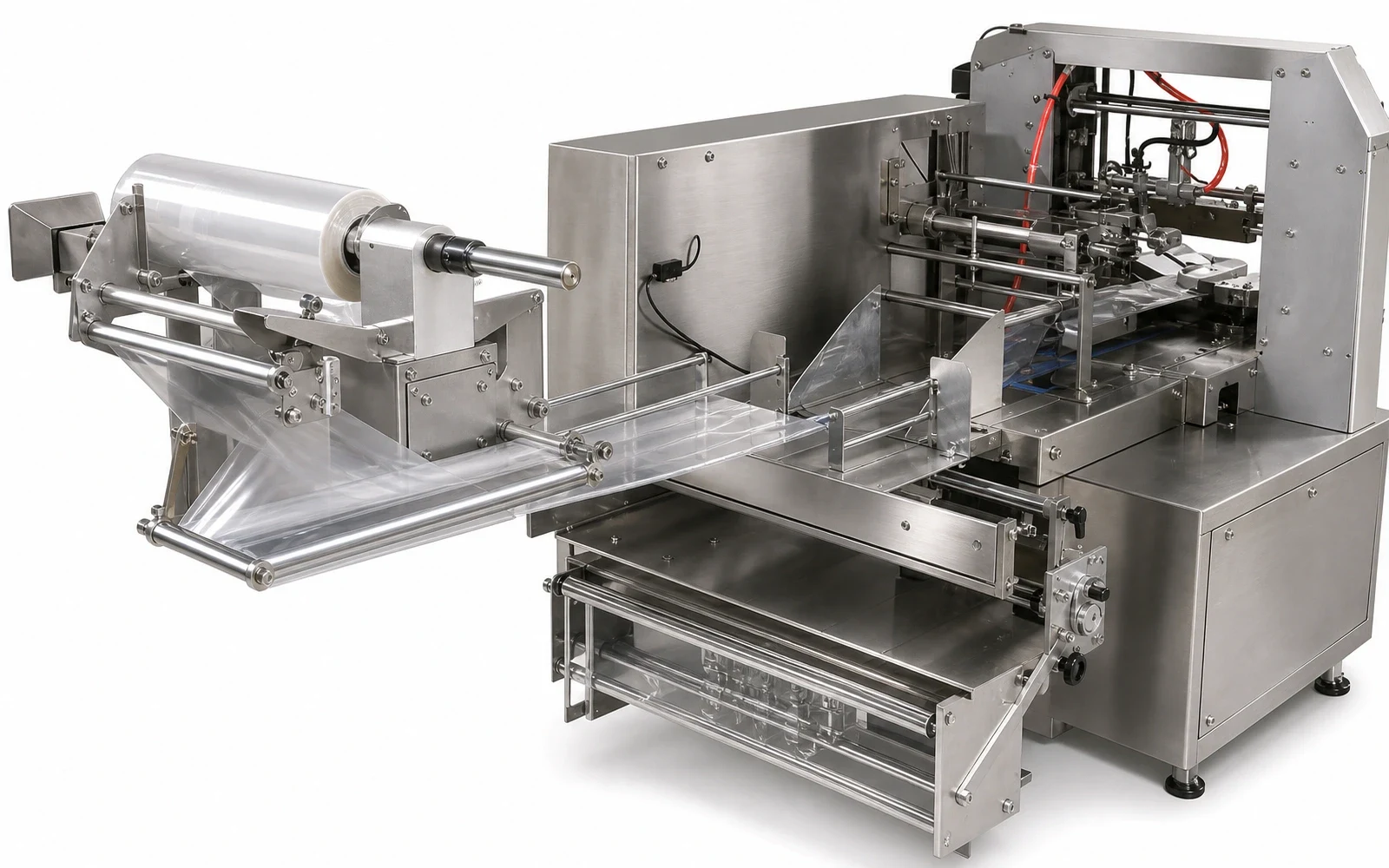

Horizontal Flow Wrapping Machine for Poultry
A servo-driven horizontal flow wrapper for tray-packed or whole poultry, configurable for approximately 40–120 packs per minute and optional gas-flush packaging.
- Model
- JS-FW-350X
- Planning Speed
- 40–120 packs/minute*
- Maximum Film Width
- Approx. 350 mm*
- Packaging
- Standard or optional gas flush
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.
PRODUCT OVERVIEW & WORKING PRINCIPLE
Servo-controlled flow wrapping for tray-packed poultry
The SIMPLOT horizontal flow wrapper forms film around tray-packed poultry, whole birds or meat portions and creates longitudinal and end seals during continuous conveying. Servo control coordinates bag length and sealing position.
Planning speed is approximately 40–120 packs per minute. Actual output depends on product spacing, dimensions, film and sealing temperature. Infeed length, film width, gas-flush option and electrical configuration can be customized.
KEY FEATURES
Servo-controlled wrapping matched to the pack format
Forming size, film specification, product spacing and optional gas supply are confirmed from real samples before the final speed is agreed.
01
Dual-servo Control
Coordinates product feed, film and sealing.
02
Printed-film Registration
Photoelectric tracking supports registered film.
03
Continuous Conveying
Suitable for consistent tray or product spacing.
04
Optional Gas Flush
Can be discussed for the required packaging process.
05
Custom Infeed and Film
Machine length and forming set are selected for the pack.
TECHNICAL SPECIFICATIONS
Technical data and configuration
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | JS-FW-350X |
|---|---|
| Planning Speed | Approx. 40–120 packs/minute* |
| Maximum Film Width | Approx. 350 mm* |
| Reference Bag Length | Approx. 65–330 mm* |
| Installed Power | Approx. 2.8 kW* |
| Drive | Dual servo |
| Packaging | Standard atmosphere or optional gas flush |
| Customization | Forming box, film, infeed, coding, voltage and gas interface |
RELATED EQUIPMENT
Build the connected process around this equipment.
Review equipment that can be coordinated as part of a practical meat or poultry processing workflow.
Continuous Belt Vacuum Packaging Machine
A continuous belt vacuum packaging machine for higher-volume poultry and meat packing, with automatic indexing and an adjustable working-bed angle.
Explore Equipment
Whole Poultry Dynamic Weight Sorter
A high-speed dynamic weight grading conveyor for whole poultry and cut-up parts, configurable for approximately 6,000–9,000 pieces per hour and multiple weight grades.
Explore EquipmentFREQUENTLY ASKED QUESTIONS
Before you request a proposal.
These answers cover common selection questions. Contact us for a review based on your actual project conditions.
Yes, if product and film dimensions fit the selected forming set.
It is an upper planning value.
No, it is a flow wrapper, use a vacuum machine when air evacuation is required.
Optional gas-flush configuration can be reviewed.
