Weighing & Sorting

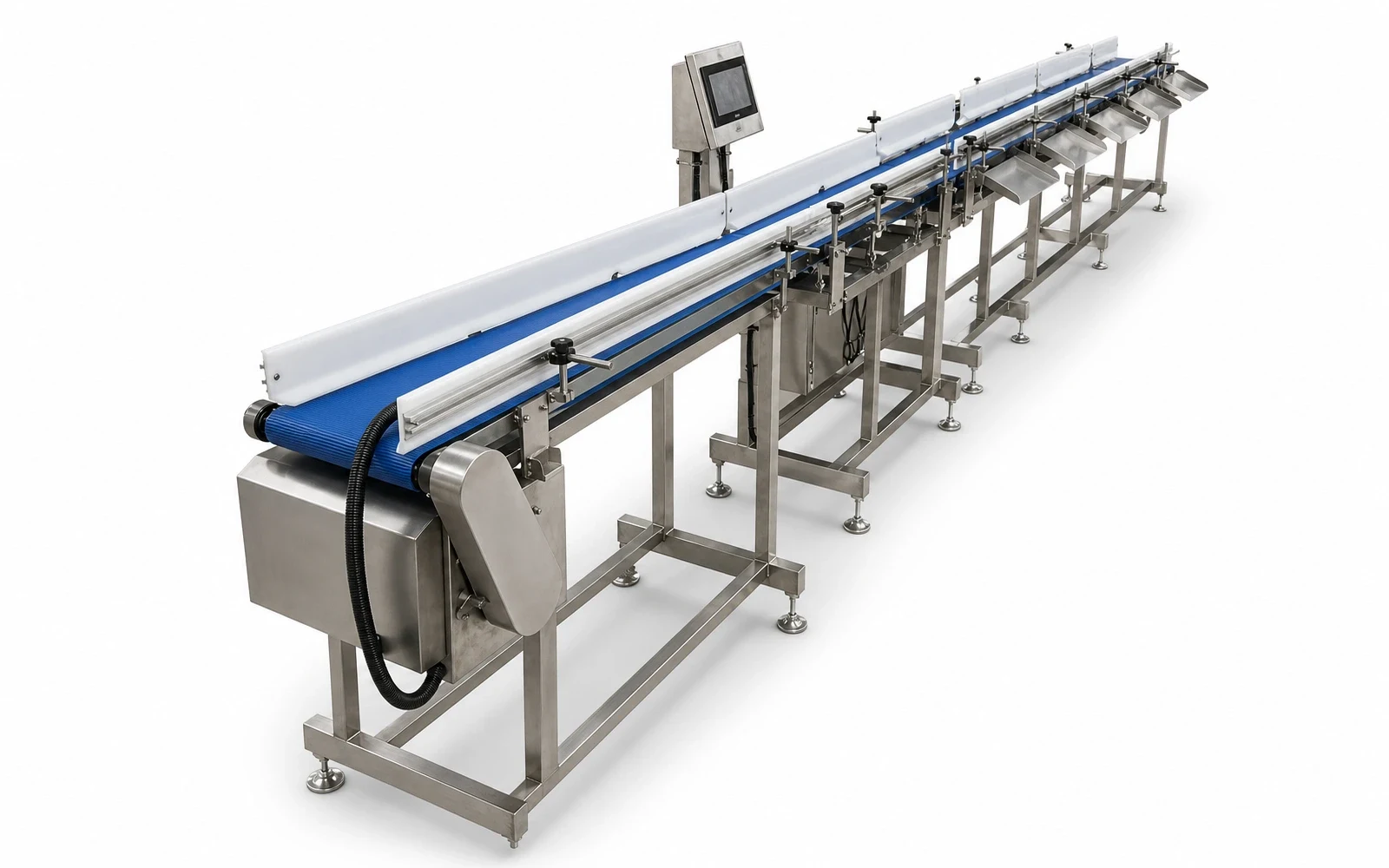

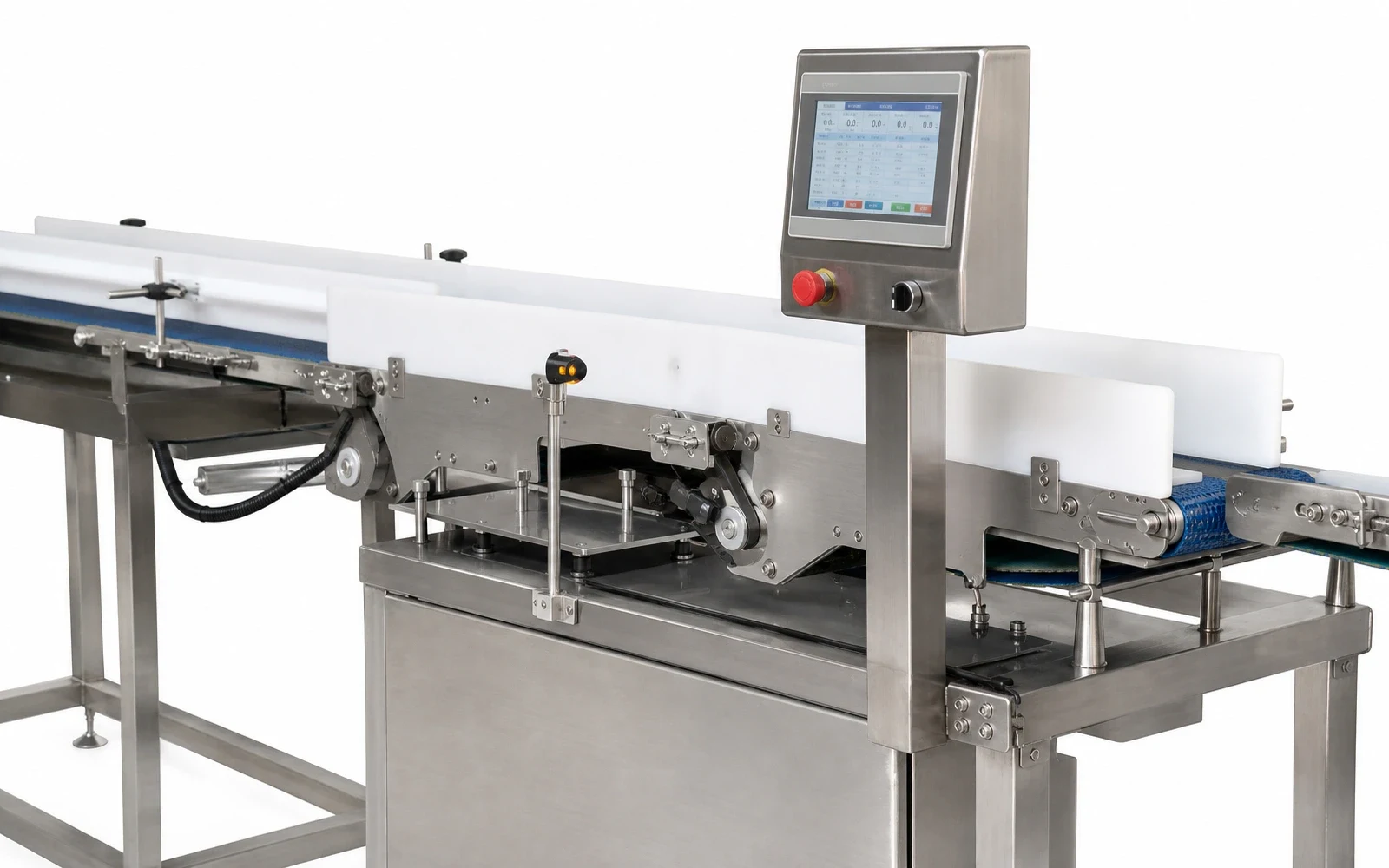

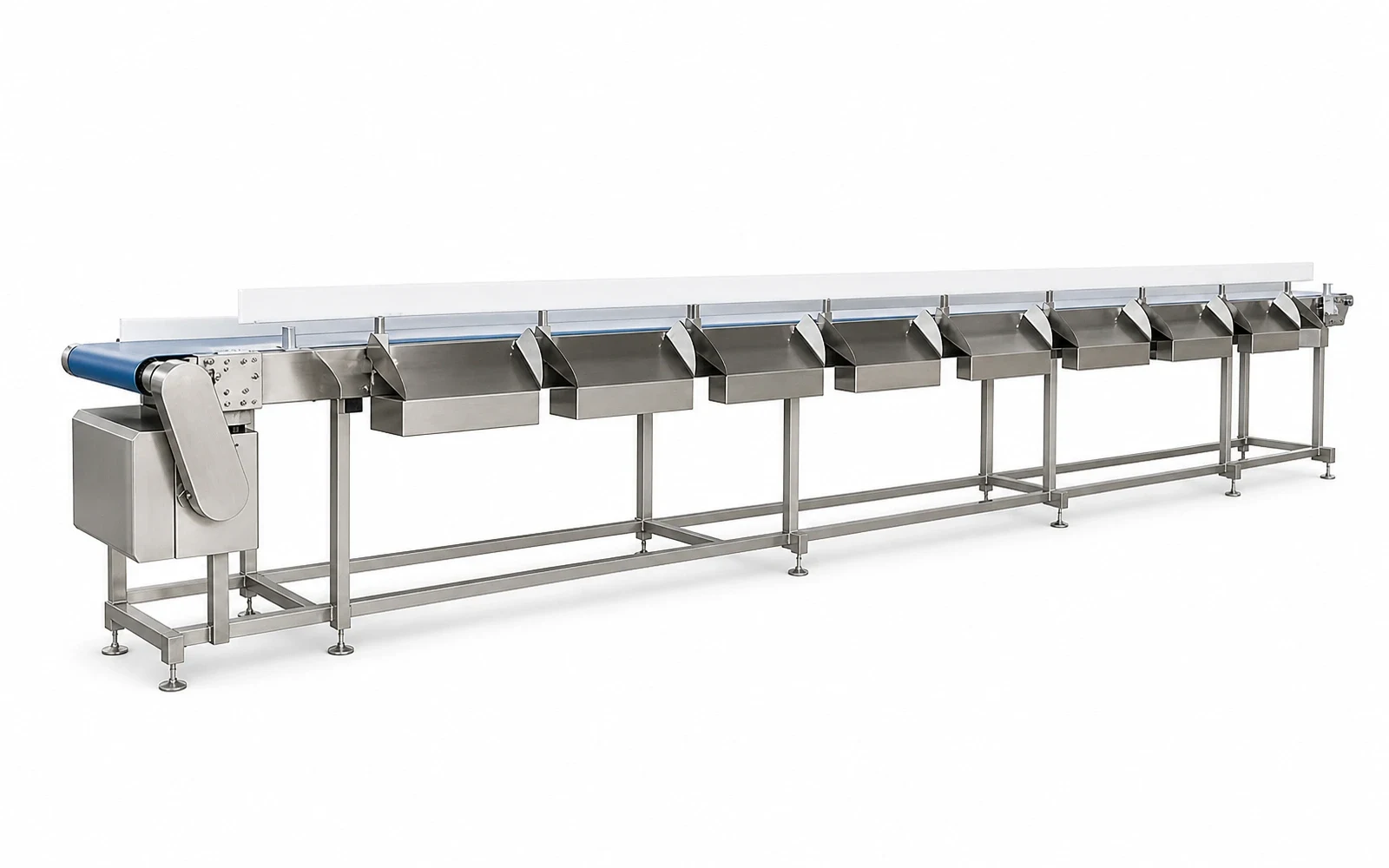

Whole Poultry Dynamic Weight Sorter
A high-speed dynamic weight grading conveyor for whole poultry and cut-up parts, configurable for approximately 6,000–9,000 pieces per hour and multiple weight grades.
- Model
- JS-WS-10G
- Planning Speed
- 6,000–9,000 pieces/hour*
- Weight Range
- Approx. 100–5,000 g*
- Sorting Grades
- 9–10 standard, customizable
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.
PRODUCT OVERVIEW & WORKING PRINCIPLE
Dynamic weighing and multi-grade sorting for poultry products
The SIMPLOT dynamic weight sorter weighs whole poultry or portioned products while they move through the conveyor. The control system compares each measurement with the selected recipe and directs the item to the corresponding grade outlet.
Planning configurations cover approximately 100–5,000 g and 6,000–9,000 pieces per hour. Grade quantity, conveyor length, rejection method, data interface and product-contact arrangement can be customized after sample testing and layout review.
KEY FEATURES
Dynamic grading configured around speed, range and accuracy
Product stability, belt speed, weighing range and target accuracy must be tested together before final throughput and tolerances are committed.
01
Dynamic Weighing
Measures products without stopping the conveyor.
02
Multiple Grade Recipes
Stores weight ranges for different products.
03
Touchscreen Control
Supports recipe selection and production statistics.
04
Configurable Sorting Outputs
Pneumatic arms, air discharge or drop chutes can be selected.
05
Washdown-oriented Frame
Stainless frame and belt arrangement support routine sanitation.
06
Custom Data Interface
Reporting and export functions are confirmed for the control package.
TECHNICAL SPECIFICATIONS
Technical data and configuration
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | JS-WS-10G |
|---|---|
| Weight Range | Approx. 100–5,000 g* |
| Accuracy Target | Confirmed by product sample testing at the agreed operating speed |
| Planning Speed | Approx. 6,000–9,000 pieces/hour* |
| Standard Grades | 9–10, custom quantity available |
| Control | 7 or 10 inch touchscreen PLC* |
| Discharge | Pneumatic arm, air discharge or drop chute |
| Belt | Food-grade PU belt |
| Reference Size | Approx. 6,500 × 1,200 × 1,400 mm* |
| Power / Air | Approx. 2.2 kW + 0.6 MPa compressed air* |
| Customization | Range, accuracy, grades, length, controls and data interface |
RELATED EQUIPMENT
Build the connected process around this equipment.
Review equipment that can be coordinated as part of a practical meat or poultry processing workflow.
Complete Overhead Poultry Processing Line
A configurable overhead line connecting poultry-processing stages, with planning capacities from approximately 500 to 10,000 birds per hour.
Explore Equipment
Two-Stage Spiral Poultry Pre-Chiller
A two-stage spiral pre-chiller for chicken, duck and goose processing, using screw conveying and aeration for controlled, more uniform cooling.
Explore EquipmentFREQUENTLY ASKED QUESTIONS
Before you request a proposal.
These answers cover common selection questions. Contact us for a review based on your actual project conditions.
Yes, after confirming product size, stability and belt spacing.
By testing the target product at the agreed range, speed, spacing and installation conditions.
Yes.
Available control and export functions are confirmed in the proposal.
