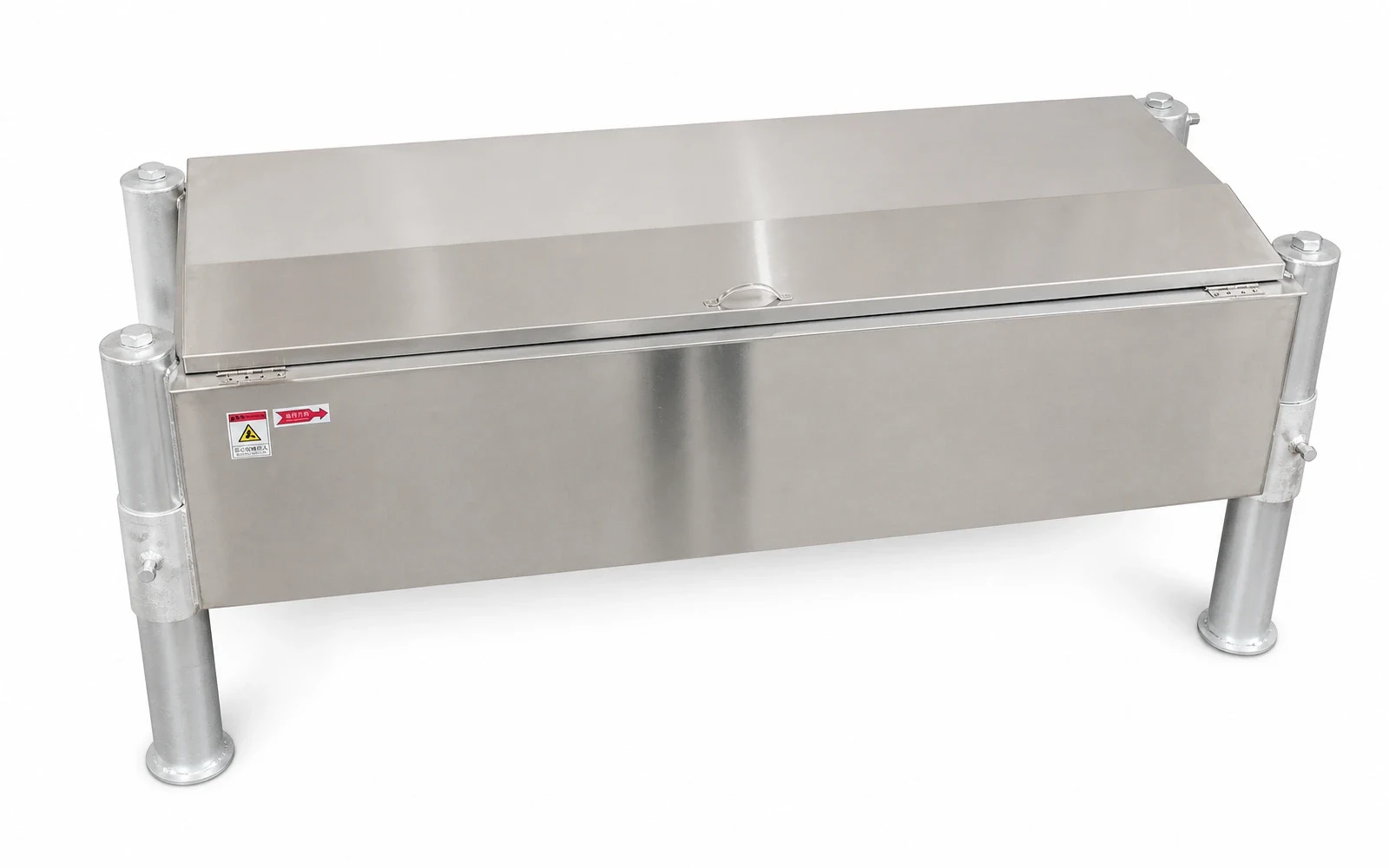

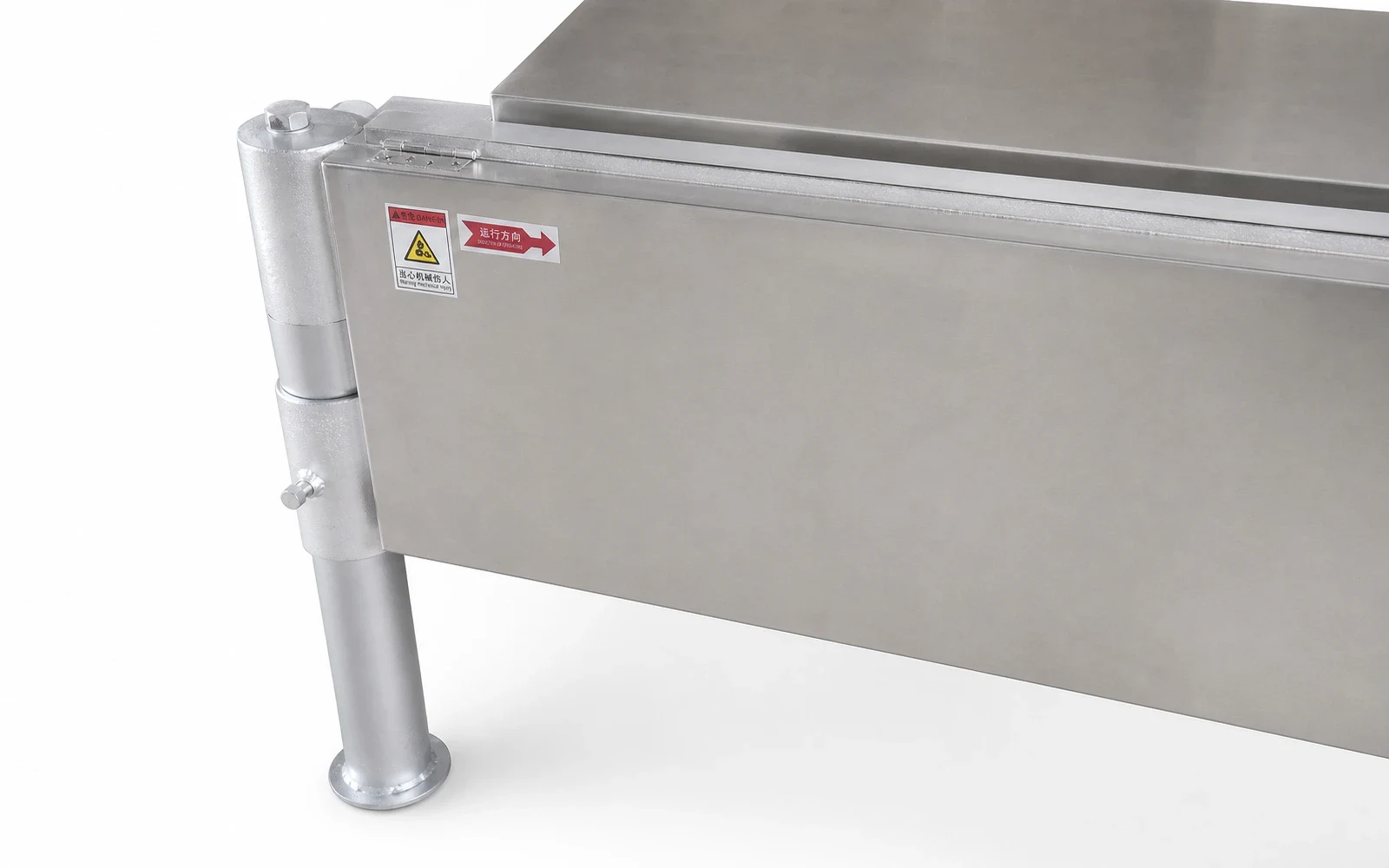

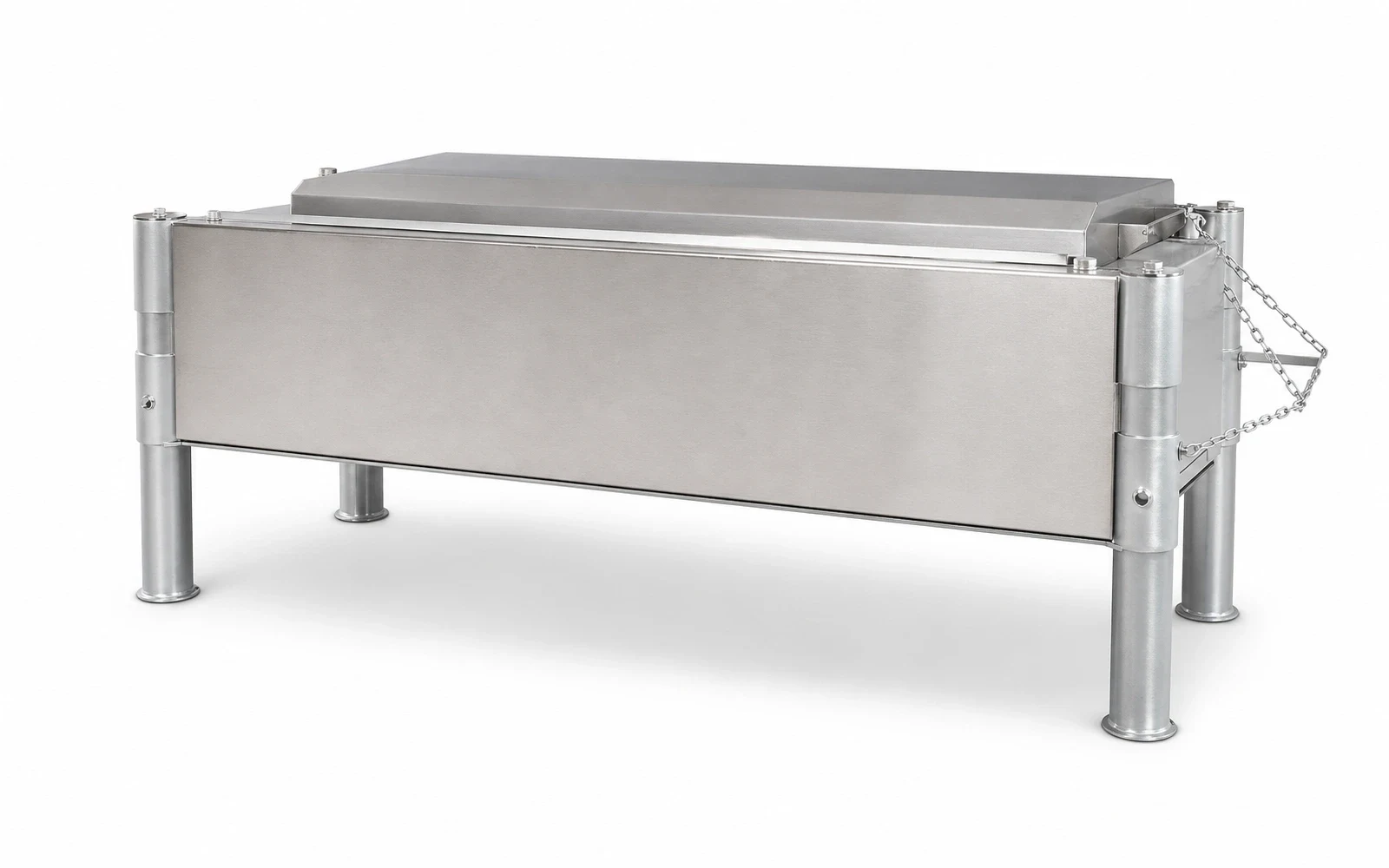

22-Axis Quail and Pigeon Plucker
A 22-axis horizontal plucker developed for quail, pigeon and other small birds, with planning capacities of approximately 800–1,500 birds per hour.
- Model
- JS-PL-22
- Application
- Quail, pigeon and small poultry
- Planning Capacity
- 800–1,500 birds/hour*
- Installed Power
- Approx. 3.0 kW*
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.
PRODUCT OVERVIEW & WORKING PRINCIPLE
Fine-feather removal for quail, pigeon and small poultry
The SIMPLOT 22-axis horizontal plucker is configured for quail, pigeon, young chicken and other small poultry. Closely arranged flexible rubber fingers contact small carcasses while the shaft spacing is set to reduce the risk of trapping or bruising.
The documented layout uses 10 upper and 12 lower shafts. Bird size, scalding result, finger hardness and working clearance must be considered together during equipment selection.
Planning capacity is approximately 800–1,500 birds per hour. Final output, dimensions, voltage and material scope can be customized after confirming the actual product and factory conditions.
01Scalded InfeedSmall birds enter after the approved scalding process.
02Flexible-finger ContactDense rubber fingers remove fine feathers.
03Clearance ControlShaft spacing is matched to carcass size.
04DischargeBirds leave for inspection and downstream processing.
KEY FEATURES
Small-bird plucking configured for controlled contact
Shaft layout, finger selection and working clearance are matched to quail, pigeon and similar carcass sizes during technical review and commissioning.
01
Small-bird Configuration
Designed around quail, pigeon and similar carcass sizes.
02
22-Shaft Layout
Ten upper and twelve lower shafts provide distributed contact.
03
Flexible Rubber Fingers
Finger type is selected to balance feather removal and carcass protection.
04
Adjustable Working Clearance
Setup is matched to bird size during commissioning.
05
Enclosed Body
Supports controlled operation and routine cleaning.
06
Custom Electrical Setup
Voltage and controls can be supplied for the destination market.
TECHNICAL SPECIFICATIONS
Technical data and configuration
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | JS-PL-22 |
|---|---|
| Planning Capacity | Approx. 800–1,500 birds/hour* |
| Shaft Quantity | 22: 10 upper + 12 lower |
| Installed Power | Approx. 3.0 kW* |
| Application | Quail, pigeon and small poultry |
| Finger Type | Flexible small-bird fingers, configuration-dependent |
| Dimensions / Material | Confirmed in the proposal |
| Electrical Supply | Customized |
RELATED EQUIPMENT
Build the connected process around this equipment.
Review equipment that can be coordinated as part of a practical meat or poultry processing workflow.
Dual-Heating Poultry Scalding Tank
A compact batch poultry scalder with electric and gas heating, a motor-driven turning shaft and a planning output of up to approximately 300 chickens per hour.
Explore Equipment
Offal and By-Product Screw Chiller
A compact screw chiller for poultry feet, wings, gizzards and small products, with planning capacities of approximately 500–2,000 kg per hour.
Explore EquipmentFREQUENTLY ASKED QUESTIONS
Before you request a proposal.
These answers cover common selection questions. Contact us for a review based on your actual project conditions.
Yes, after confirming carcass size and finger setup.
No, it is the upper planning range.
Scalding strongly affects feather release and final plucking quality.
Shaft clearance, fingers, voltage and interfaces can be configured by project.
