A heavy-duty horizontal poultry plucker with 34 rubber-finger shafts, planned for continuous processing of approximately 1,000–1,500 birds per hour.
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.

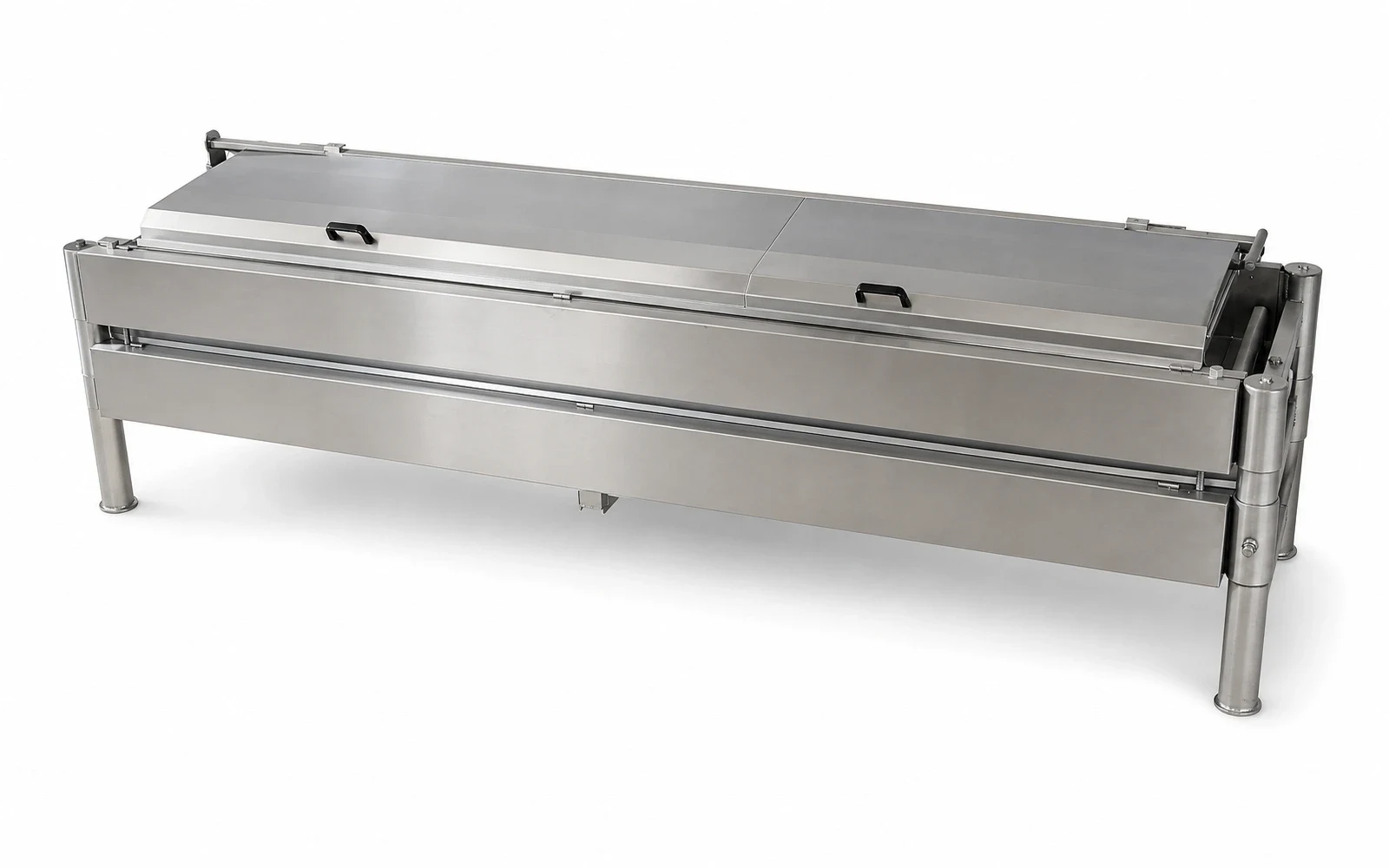

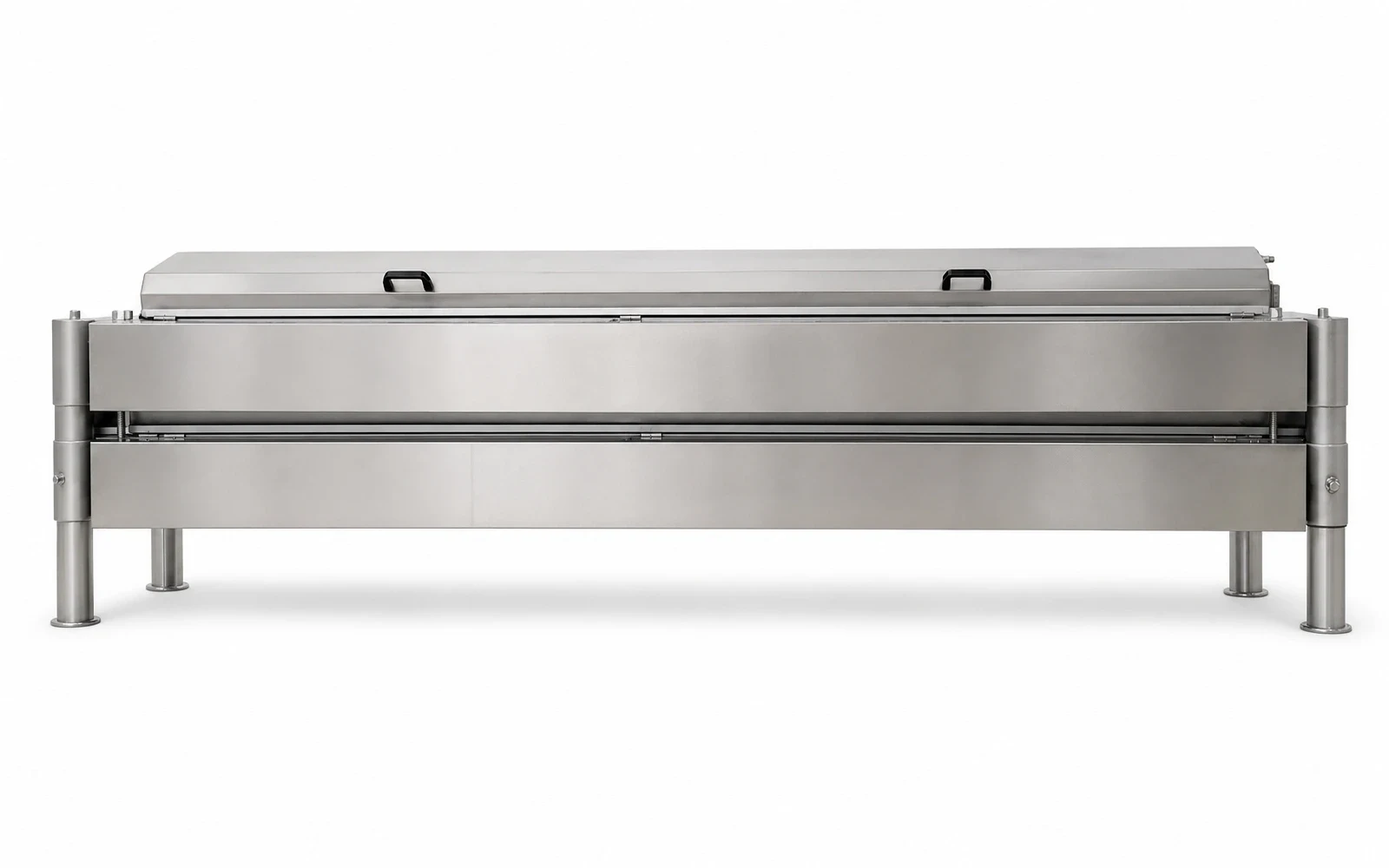

The SIMPLOT 34-axis horizontal poultry plucker uses upper and lower banks of rotating rubber-finger shafts to process birds continuously through an enclosed chamber. The documented arrangement includes 16 upper shafts and 18 lower shafts.
Two geared motors drive the shaft groups, while the enclosed body and service covers support routine inspection and cleaning. Working clearance and finger type are selected around bird species, average weight and the upstream scalding result.
Planning capacity is approximately 1,000–1,500 birds per hour. Final output, power, material grade and machine interfaces are confirmed after project review; custom configurations are available.
The upper and lower shaft arrangement is configured around bird size, scalding conditions and the required production rhythm.
Sixteen upper and eighteen lower shafts distribute plucking contact.
Suitable for connection to medium-capacity poultry workflows.
The documented configuration uses two 4.0 kW geared motors.

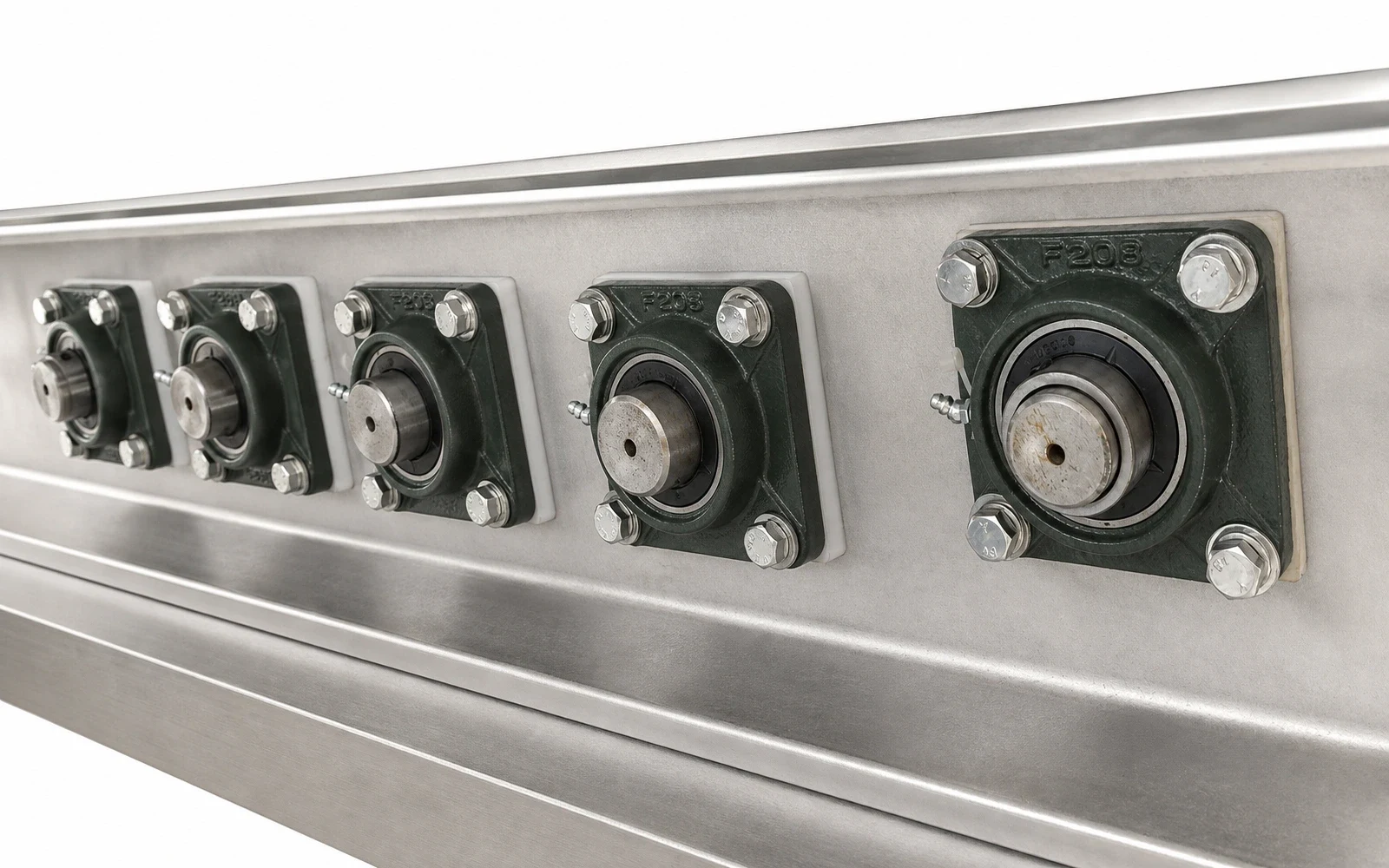

The documented shaft system uses multi-stage sealing to reduce water and feather ingress.
Top covers support inspection and cleaning.
Finger hardness, spacing, voltage and interfaces can be selected by project.
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | JS-PL-34 |
|---|---|
| Planning Capacity | Approx. 1,000–1,500 birds/hour* |
| Shaft Quantity | 34: 16 upper + 18 lower |
| Installed Power | Approx. 4.0 kW × 2* |
| Poultry Application | Chicken and duck, other poultry subject to review |
| Operation | Continuous horizontal conveying/plucking |
| Bearing Protection | Multi-stage water-resistant sealing |
| Material / Dimensions | Confirmed for the selected configuration |
| Electrical Supply | Customized to destination standard |
