An in-line A-frame poultry plucker available in 48-disc and 72-disc configurations for documented planning capacities of approximately 4,000–5,000 birds per hour.
* Planning, rated and reference values vary by product, configuration and operating conditions. Final data is confirmed in the technical proposal.
Share the raw material, incoming condition, target product, required output, local utilities and factory layout for engineering review.

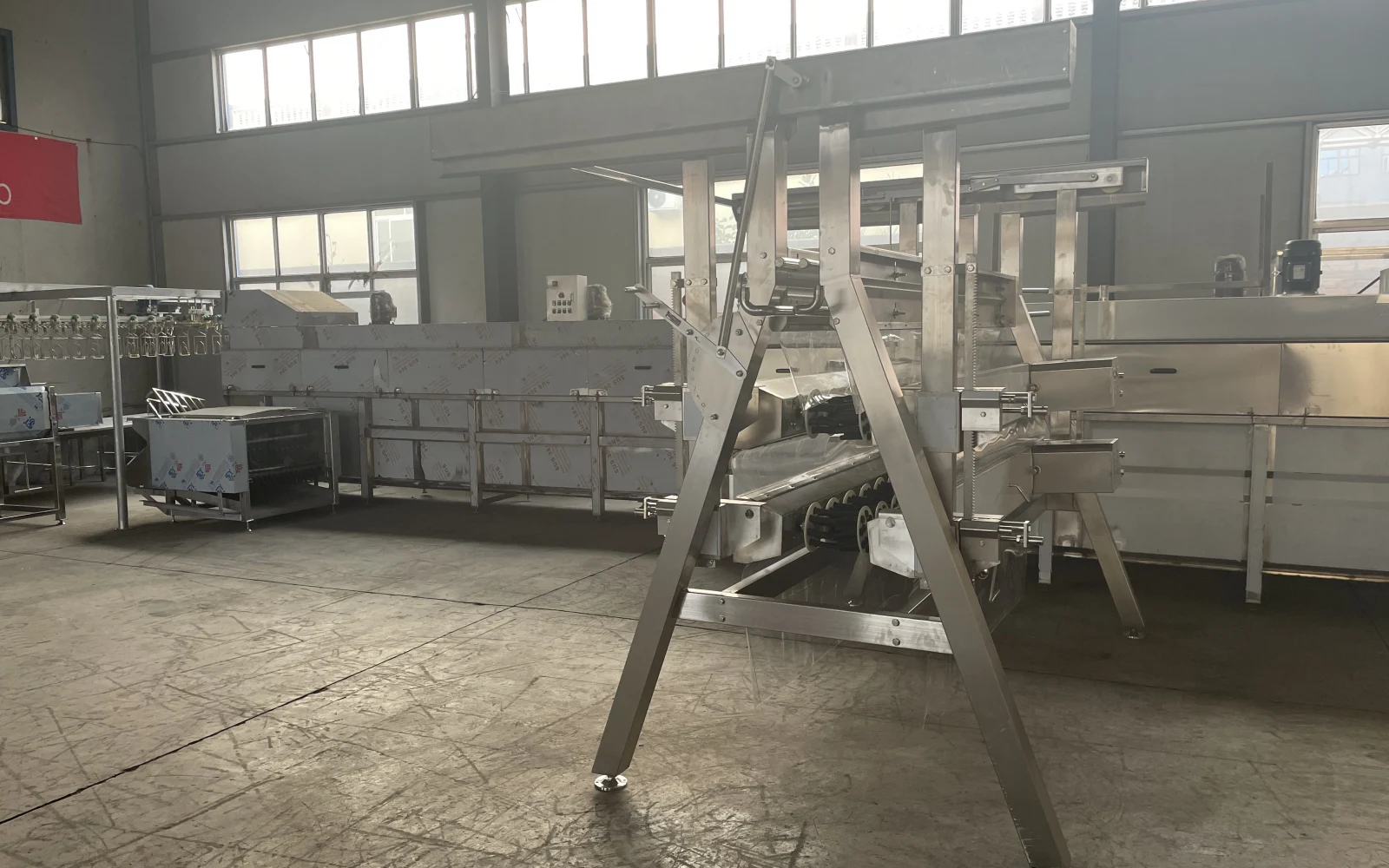

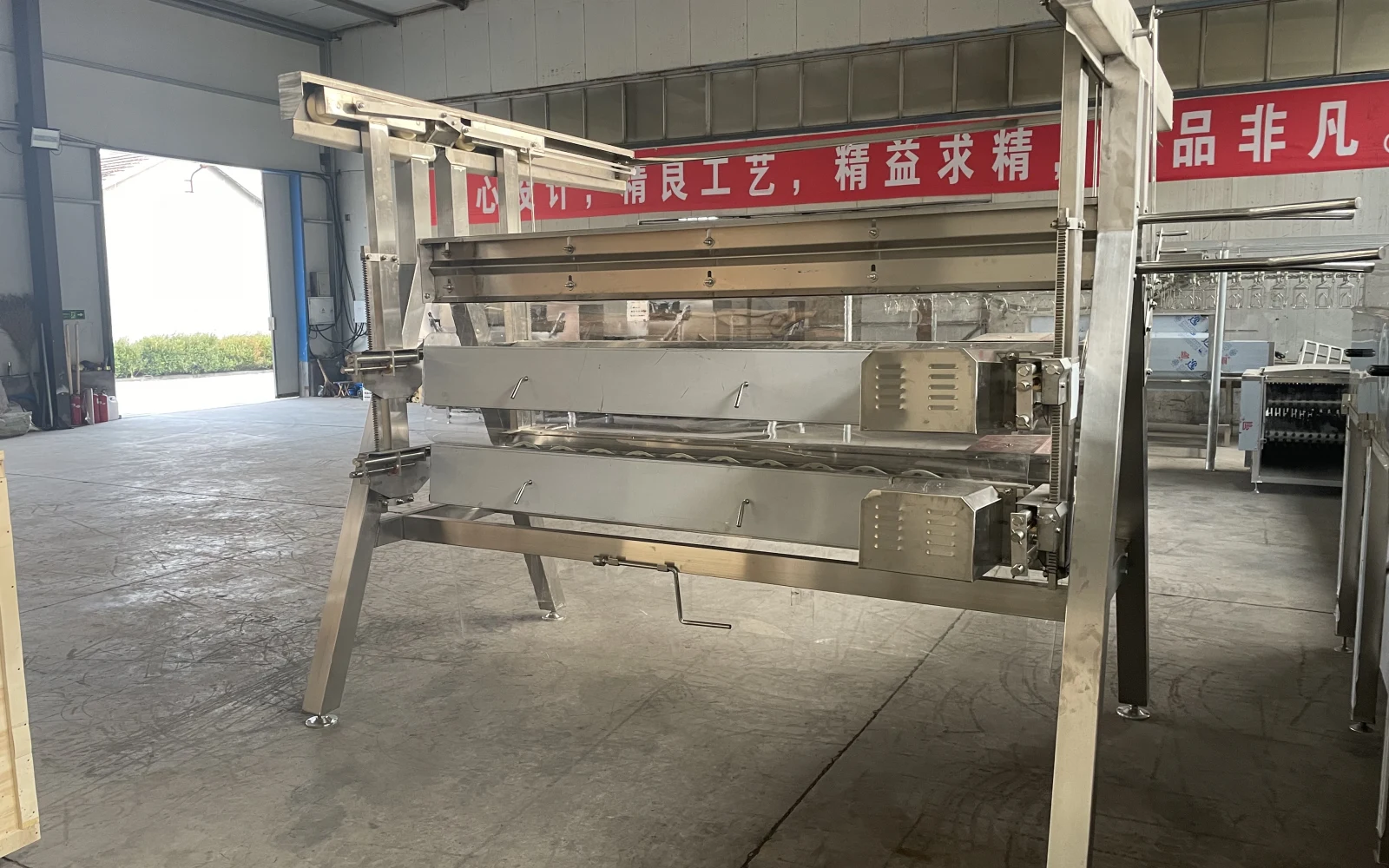

The SIMPLOT A-Type poultry plucking machine is installed around an overhead shackle conveyor. Birds travel between multiple banks of rotating rubber-finger discs so that plucking contact is distributed along the conveying path.
The documented configurations include a 48-disc model planned for approximately 4,000 birds per hour and a 72-disc model planned for approximately 5,000 birds per hour. Mechanical adjustment points allow the working position and angle to be commissioned for the actual poultry and conveyor.
Final output and plucking result depend on upstream scalding, bird weight, line speed and rubber-finger setup. Custom voltage, finger arrangement and line-interface details can be discussed.
Disc quantity, working clearance, conveyor elevation and rubber-finger configuration are selected together for the poultry profile and required line output.
48-disc and 72-disc layouts support different line requirements.
Fits around an overhead conveyor and provides mechanical adjustment points.

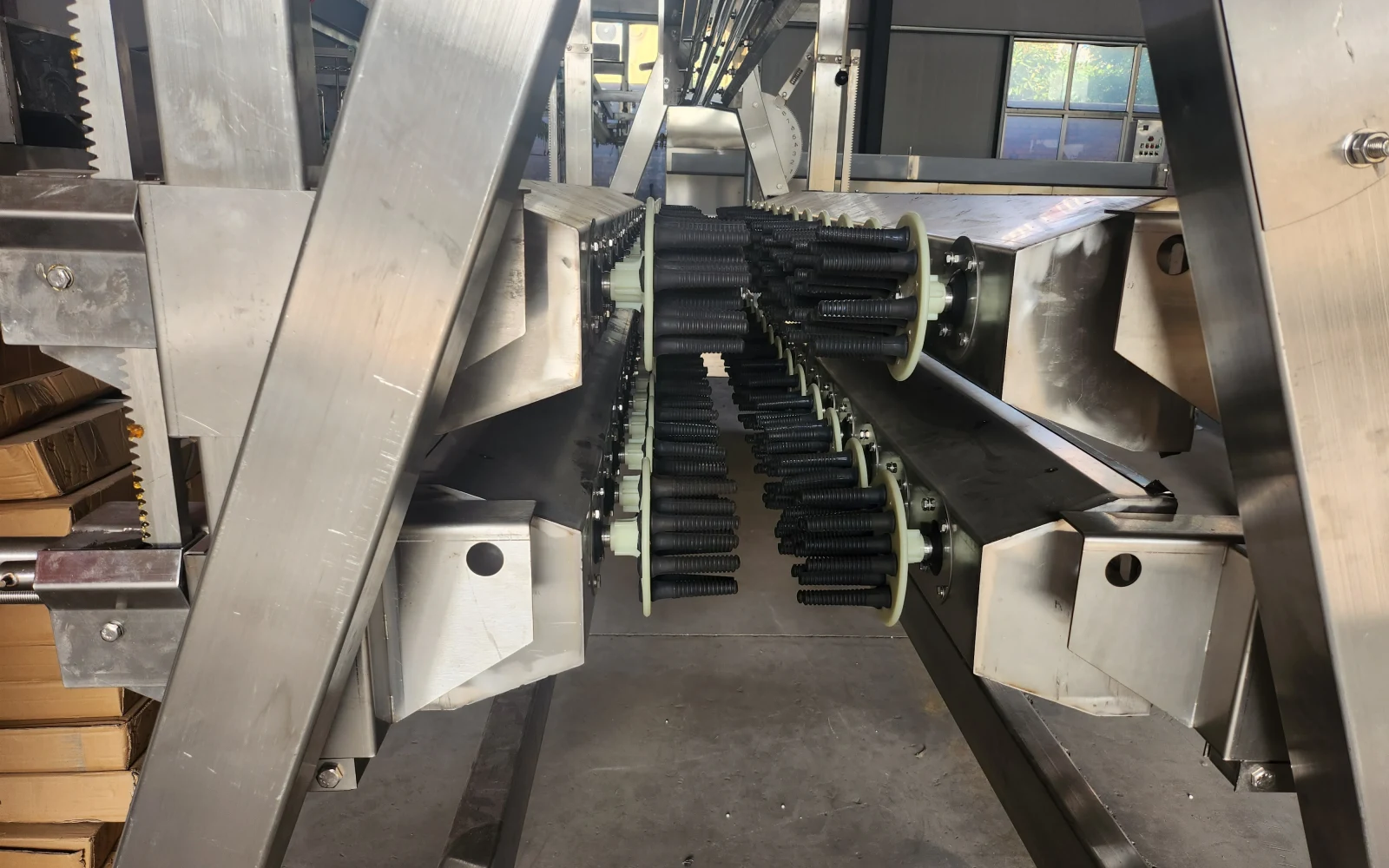

Multiple rotating discs work along the bird travel path.
Roll spacing and angle are set with actual birds and line conditions.
Conveyor elevation, shackle position and electrical standard are project-specific.
Values are reference information. Final specifications depend on capacity, product conditions and the approved project layout.
| Model | 48-disc / 72-disc |
|---|---|
| Available Configurations | 48-disc and 72-disc |
| 48-disc Planning Capacity | Approx. 4,000 birds/hour* |
| 48-disc Installed Power | Approx. 8.8 kW* |
| 48-disc Weight | Approx. 1,000 kg* |
| 72-disc Planning Capacity | Approx. 5,000 birds/hour* |
| 72-disc Installed Power | Approx. 13.2 kW* |
| 72-disc Weight | Approx. 1,300 kg* |
| Overall Dimensions | Approx. 4,000 × 2,300 × 2,400 mm* |
| Line Interface | Overhead shackle conveyor |
| Working Setup | Spacing and angle adjusted during commissioning |
| Material Grade | Confirmed in the quotation |
